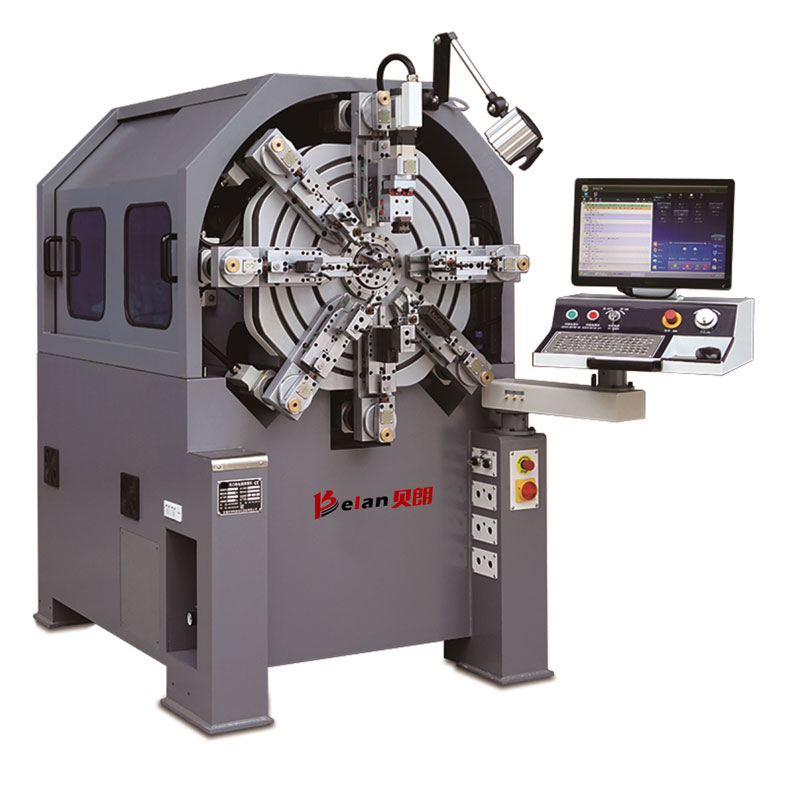

    BL-CNC-1245 Camless spring machine

    Introduction：
    The camless spring machine was controlled with five axis,wire feed axis,cam axis,up-cut blade axis,down-cut blade axis and pitch axis.

    GET A QUOTE

    Product Description

    Technical Parameters

    Model No. BL-CNC-1245
    Wire dia. 1.2-4.5mm
    Maximum feeding value 10000.00mm
    Minimum wire feeding value 0.01mm
    Maximum wire feeding  speed 80m/min.
    Maximum wire feeding  length unlimited
    Axis number 12
    Total output power of servo motors 20.3KW
    Inpur power supply 380V/50HZ/3PH
    Control system Mada in Taiwan
    Program storage 2000puls
    Compressor air pressure 5-6KG/CM
    Probe number 3
    Size（L*W*H） 2650mm*1900mm*2070mm
    Weight of Machine 4100KG

    Spring Machine Video


    Belan Spring Machine

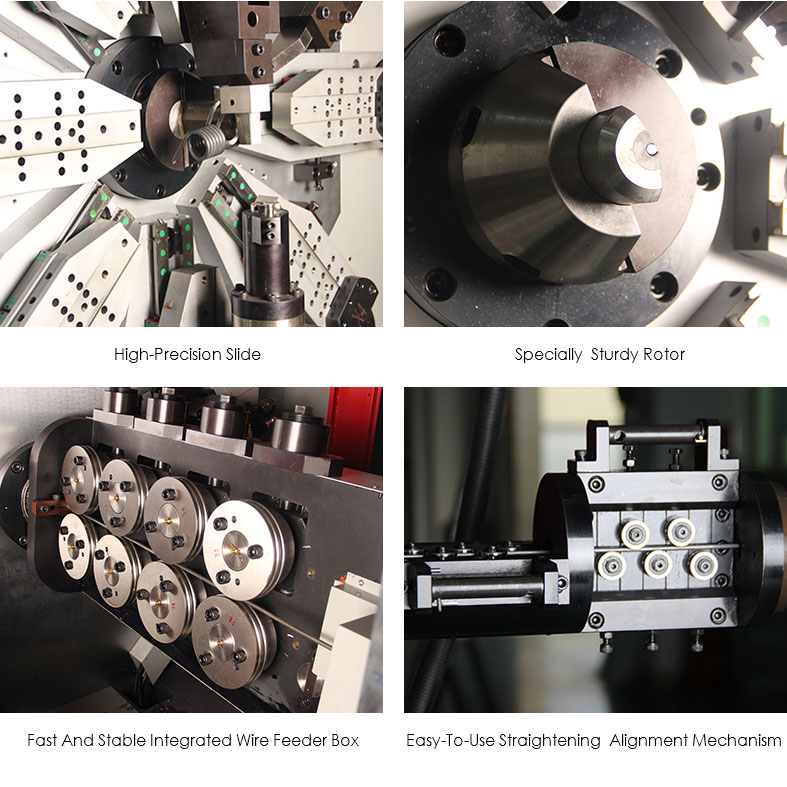

    Product Advantages


    1.Controlled with five axis:wire feed axis,cam axis,up-cut blade axis,down-cut blade axis and pitch axis.
    2. The five axis can work single-step or synchronously.
    3.Computer interface displayed in Chinese and English which makes the operation easy.
    4.Equipped with right or left-handed winding blade rest.
    5.The cutter can perform straight cut,twist cut and swing cut.
    6.The computer has software functions of automatic programming.

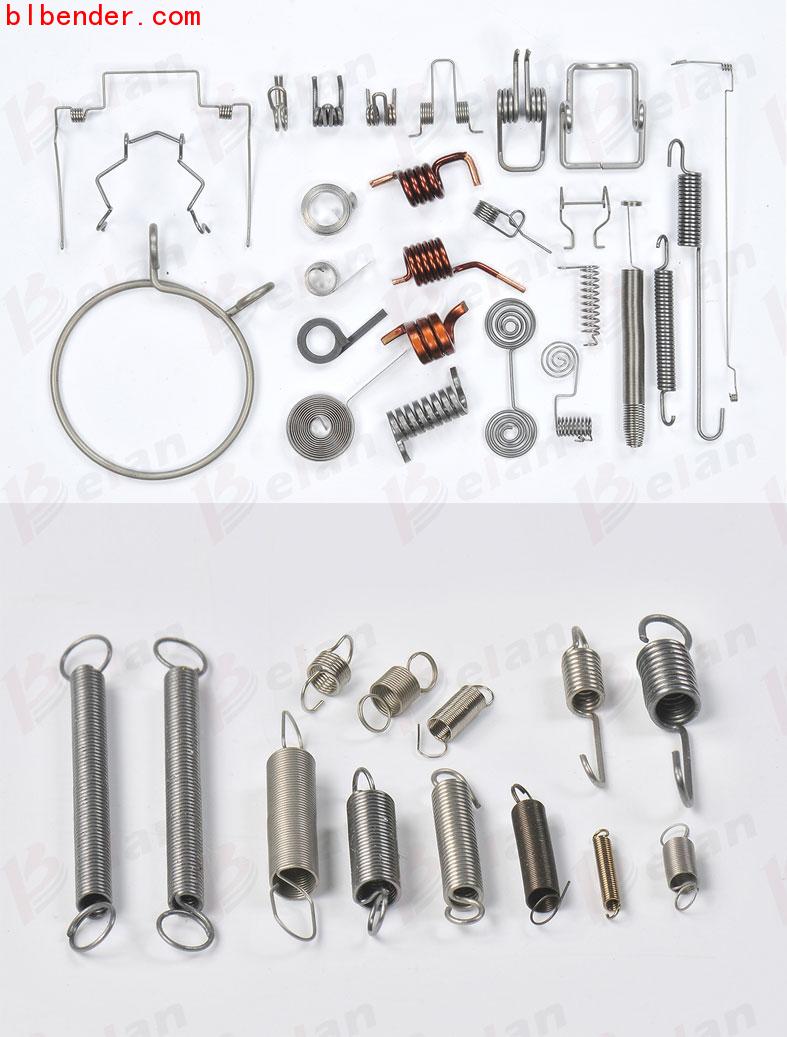

    Wire Forming Drawing
