When a furniture manufacturer develops a 14 mm chair bracket, the real challenge is repeatable production rather than making one sample. A cnc wire bending machine must keep feeding, forming and changeover stable as orders move into volume production. BELAN’s BL-3D-51400 combines rotary-head forming with coordinated axes for complex chair supports and related wire components.

Production Challenges for Chair Brackets

Manual correction may work during sampling, but small changes in angle or length can create assembly gaps, welding misalignment and left-right mismatch in a batch. Thick wire also brings material springback, so operators need stored process data and repeatable machine movements. A cnc wire bending machine gives the production team a controlled way to repeat the approved program instead of relying on personal feel.

Flexible Production for Different Designs

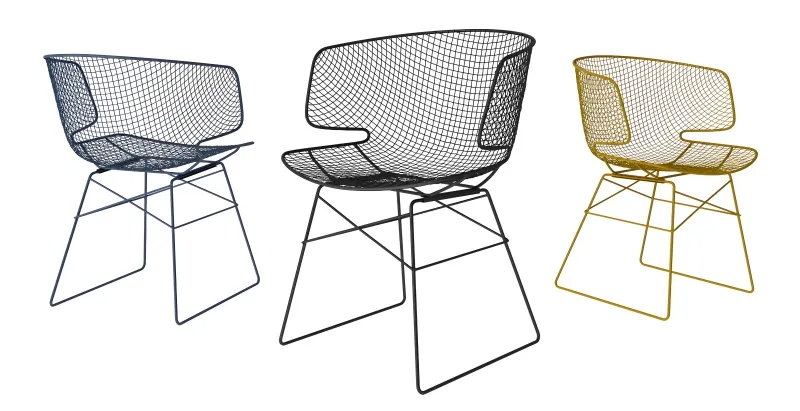

Chair brackets vary with seat size, backrest geometry and customer styling. Managing each design with a separate fixture increases floor space and changeover time. Program-based production allows several drawings to be managed on one machine, helping furniture factories respond to custom orders while keeping the forming method consistent. BELAN Machinery provides professional automotive wire forming solutions!

How the BL-3D-51400 Fits the Process

After the operator creates a program from the product drawing, the machine can coordinate feeding, straightening, spatial bending and cutting. A first-off part is checked before continuous production begins. Fewer transfers between workstations reduce repeated positioning and make the overall process easier to standardize. The cnc wire bending machine is therefore evaluated as part of a complete forming workflow, not only as a single bending tool.

Rotary Head Helps Control Material Movement

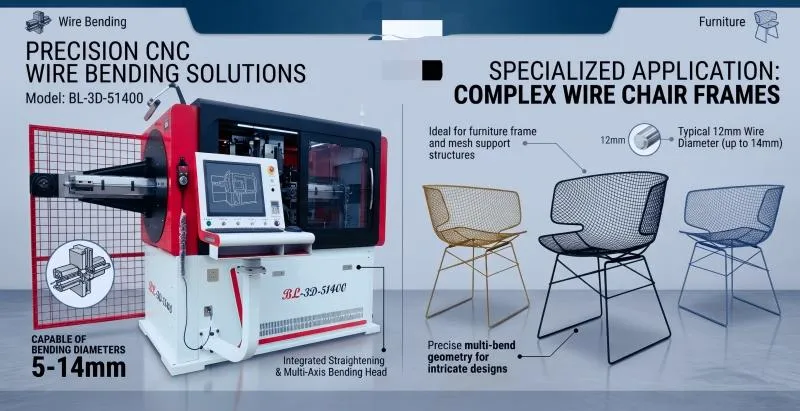

The BL-3D-51400 forms three-dimensional geometry through a rotating head. The wire can mainly move forward and backward while the head creates the required direction changes. This arrangement is useful for 14 mm furniture supports that combine flat bends, continuous curves and changes of spatial direction. Less manual turning leaves the operator more time for program confirmation and dimensional inspection. BELAN Machinery provides professional automotive wire forming solutions!

Coordinated Axes for Complex Profiles

Long arcs, angled sections, returns and multi-direction transitions are difficult to finish in one simple operation. Coordinated feeding, bending and rotary movements let the programmed sequence connect these operations. The final tooling and path must still be verified against the drawing, but the wider motion range gives designers more freedom and can reduce secondary straightening.

Forming Space and Straightening Control

Wide chair frames need enough clearance between bends, tooling and the finished profile. When the forming area is too small, engineers may have to split the process and add intermediate locating work. A suitable cnc wire bending machine can complete more of the movement inside one forming area, supporting appearance consistency and reducing extra correction.

During changeover, straightening directly affects feeding accuracy. The BL-3D-51400 uses a marked straightening structure so operators can record settings for different materials and wire sizes. Calling up a close historical setting and fine-tuning it with the first part helps create a repeatable standard operating method, even when the production team changes. BELAN Machinery provides professional automotive wire forming solutions!

What to Check Before Selecting Equipment

Do not judge a cnc wire bending machine only by its maximum wire diameter. Review the bracket’s overall envelope, number of bends, material strength, bend directions, target cycle time and expected changeover frequency. The important question is whether the machine’s movement range and tooling access match the actual drawing.

Prepare Drawings for a Practical Review

Before purchasing, send the supplier a two-dimensional or three-dimensional drawing together with material, wire diameter, output and cycle-time targets. BELAN can review the forming path and recommend a suitable configuration for chair brackets, arm supports and other furniture components. Contact our team to discuss a sample test and production plan for your project. BELAN Machinery provides professional automotive wire forming solutions!
