Product Description
Key Features & Benefits
● Servo Control Precision GuaranteeIt adopts servo imported from Japan and is controlled by professional CNC computer to ensure high-precision wire feeding, high-precision bending, and high-quality cutting.

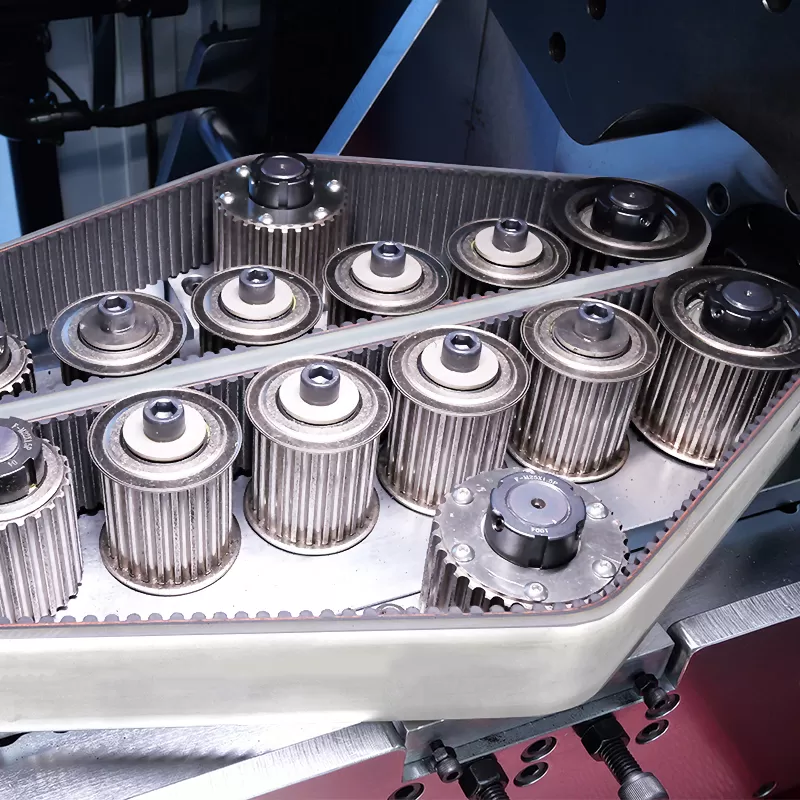

● Caterpillar feeding reduces mold
Using crawler-type wire feeding structure to reduce scratches on copper strips, and no need to change molds for different sizes, improving efficiency CNC-controlled with batch programming
High-precision servo system (±0.1° accuracy)
Compatible with copper/aluminum busbars (Width: 10–45mm, Thickness: 2–6mm)
Integrated cutting, punching, and bending
Supports customized dies for complex shapes
Optional: Auto-feeding and finished product collection systems
Technical Parameters
| Type | BL-TP-45-6E | BL-TP-50-7E |
| No. of Axis | 13-Axis | 13-Axis |
| Applicable Wire Dia. | width Φ:2.0-6.0mm thickness Φ:10.0-45mm |
width Φ:2.0-7.0mm thickness Φ:10.0-50mm |
| Crawler feeding | 1-Set | 1-Set |
| Power of wire feeding motor | 4.5KW | 5.5KW |
| Power of wire rotation motor | 2.7KW | 5.5KW |
| Power of 1 coiling motor | 2.0KW*1 | 1.5KW |
| Power of 2coiling motor | 4.5KW*1 | 5.5KW |
| Power of arm servo motor | 2.0KW*6 | 5.5KW*8 |
| Power of arm servo motor | 5.5KW*2 | / |
| Power of cutting servo motor | 1KW | 1.5KW |
| Main Machine Weight | 6000KG | 6800KG |
| Input Power | Three phase 380V | Three phase 380V |
| Machine Size(L*W*H) | 2800MM*2200MM*2100MM | 3000mm*2200mm*2100mm |
Wire Bender Videos
Our busbar bending machine can be bent flat, vertically or twisted, and short straight lines can be formed by hedging, which is suitable for the forming of copper and aluminum bars.
Product Application
Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.
Wire Forming Drawing

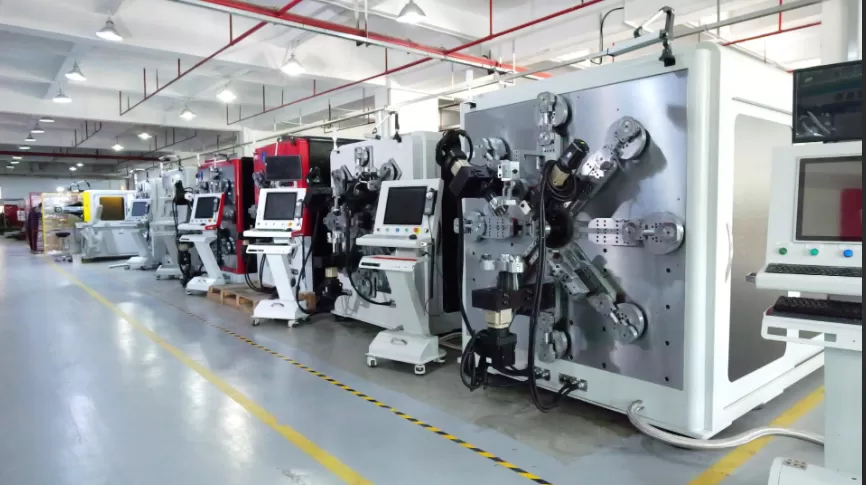

Manufacturing Capacity
Belan automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
Honor Certification
Customer case
