Car Frame Seat Forming Foam Steel Wire Bending Machine

Cost-effective bending equipment specially developed for automobile seat foam steel wire.

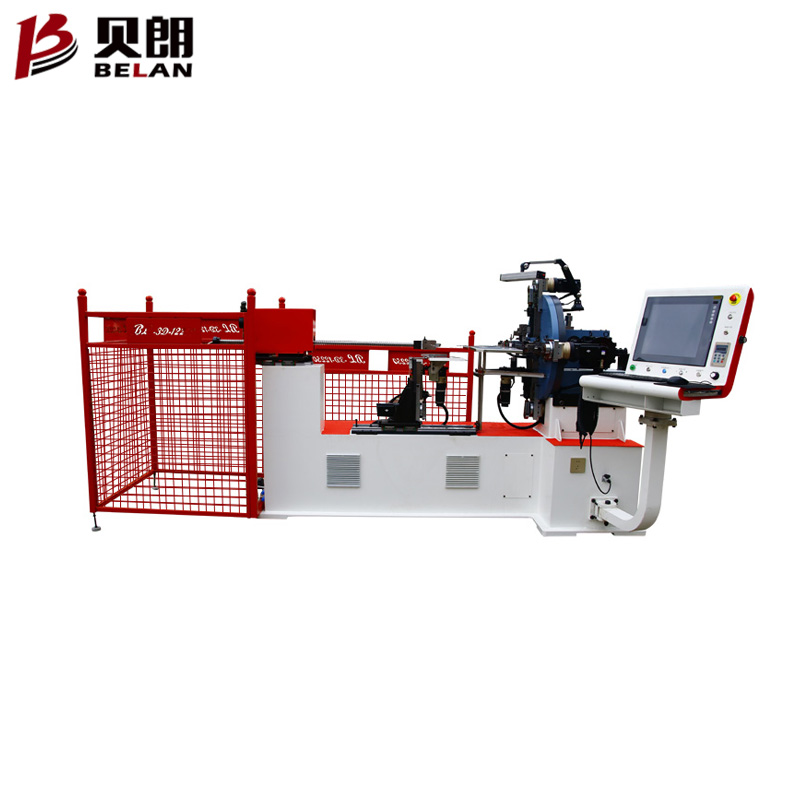

Car seat frame bending double-head Car seat steel wire forming machine Car seat frame bending double-head Car seat steel wire forming machine
Car seat frame bending double-head Car seat steel wire forming machine Car seat frame bending double-head Car seat steel wire forming machine

Car seat frame bending double-head Car seat steel wire forming machine

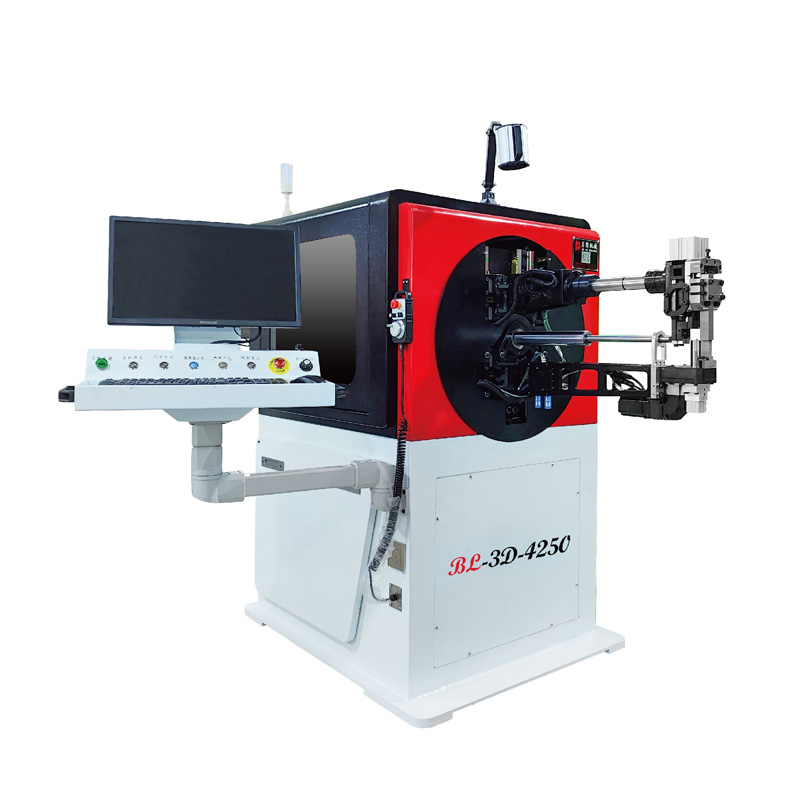

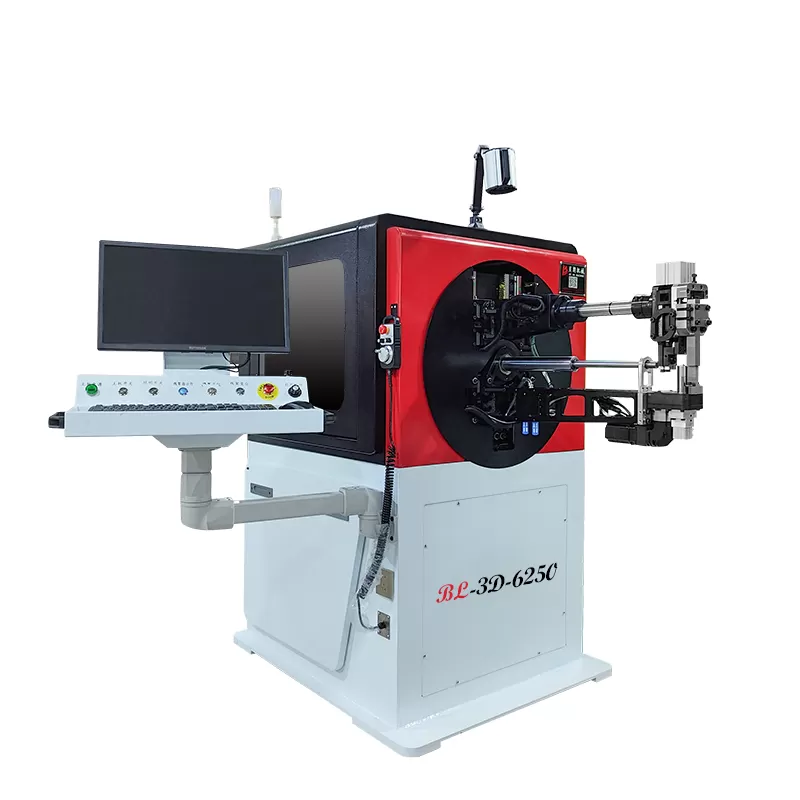

3D CNC Car seat foam steel wire bending forming machine

GET A QUOTE

Product Description

Car seat steel wire forming machine

Technical Parameters

Type BL-2T-12250 Parameter
Applicable Wire Dia. Soft material Φ:1.6-3.5mm
Hard material Φ:1.6-2.5mm
Bending stroke 100~400mm
No. of Axis 12 Axis
Total power 12.4KW
Power of Wire Feeding Motor 2.7KW
Power of Crank Arm Motor 1.0KW*4
Power of Free Hand Motor 0.4KW
Power of Curl Motor 0.4KW
Power of Core Bending Motor 1.0KW
Power of Angle Folding Motor 0.4KW
Power of Angle Folding Lifting Motor 1.0KW
Power of Clamping Motor 1.5KW
Power of Rotating Motor 1.0KW
Input Power 3AC 380V/50HZ
Weight of Machine 1800KG
Size (L*W*H) 3700mm*1800mm*1800mm

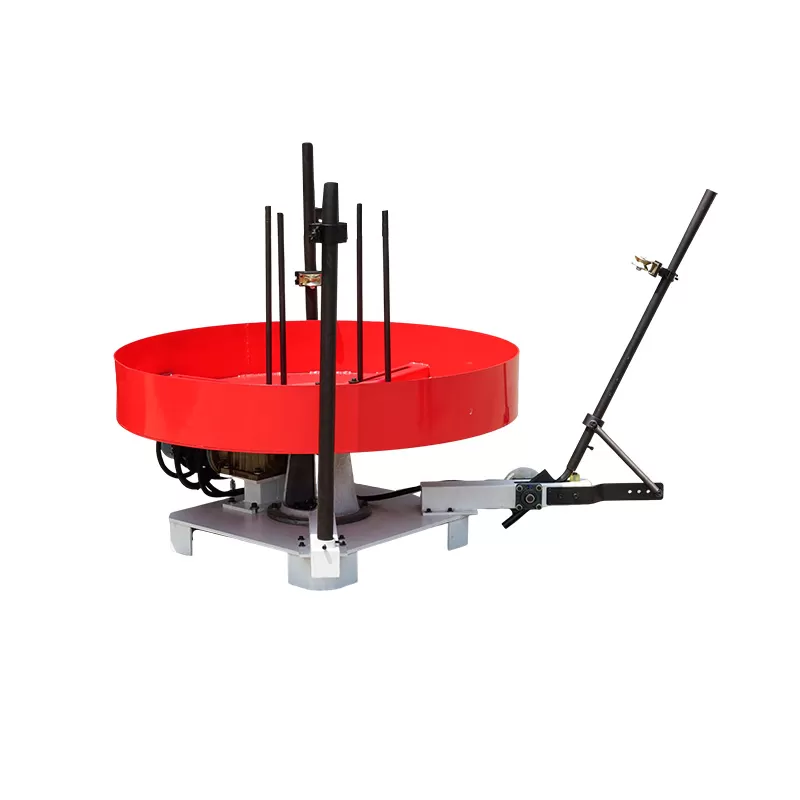

Maximum load weight of automatic wire feeder: 200KG
Size (L*W*H) 1200mm*1100mm*1200mm

Product Advantages

1. 12-axis servo for stable molding
High-precision full-servo motors to ensure product processing stability, all motors Can be performed synchronously or in single steps
2.Multifunctional manipulator
Free hand + manipulator forming, free angle bending, can form 100mm600mm long steel wire pieces and asymmetrical products (foamed steel wire for automobiles)
3.NC programming Alarm prevention
AQIA dual-channel control system is adopted to adjust the angle and length of the product arbitrarily.There is an automatic shutdown alarm function when the wire is broken and the wire is wound

Product Application

Products are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

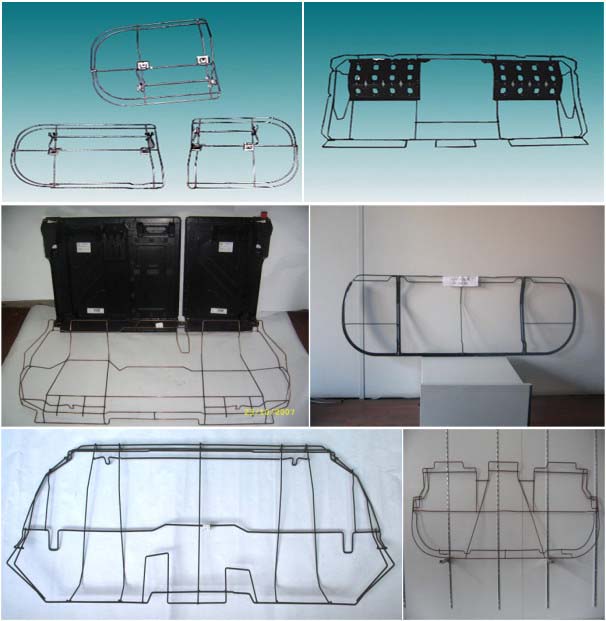

wire bending machine samples

Wire Bending Machiner Video

Wire Bending Drawing

Wire Bending Drawing Products

Manufacturing Capacity

Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.

Honor Certification

Customer case

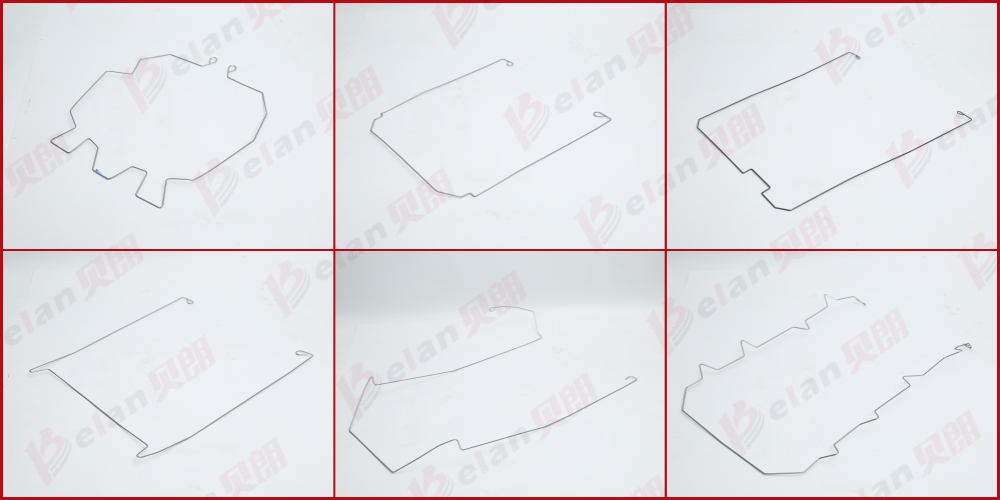

Belan wire bending machine customer case
