Car Frame Seat Forming Foam Steel Wire Bending Machine

Cost-effective bending equipment specially developed for automobile seat foam steel wire.

e-mobility machines busbar machines e-mobility machines busbar machines
e-mobility machines busbar machines e-mobility machines busbar machines
e-mobility machines busbar machines e-mobility machines busbar machines

Automotive seat grids forming machine Automobile steel wire bending machine

Automotive seat grids forming machine Automobile steel wire bending machine

GET A QUOTE

Product Description

e-mobility machines busbar machines

Technical Parameters


Type Grid machine Parameter
Applicable wire Dia. W-shaped steel wire:Φ2.0mm
Plastic wrapped steel wire:Φ3.0mm
Number of control axis 28-34 Axis
Total power 30KW
Weaving station 10 Axis
W Forming station 2-4 Axis
Plastic wrapped steel wire station 12 Axis
Sheep Horn Hook Forming Station 1 2-4 Axis
Sheep Horn Hook Forming Station 2 2-4 Axis
Rough stock of process data  ≥2000
Stabilized power (reference) 40kw
Pneumatic system 0.5-0.6 MPa
probe 4 pc
Input Power 380V/50Hz/3Ph
Weight 6000KG
Machine Size(L*W*H) 11500*4500*2400mm

Product Advantages

Feature and Function
1.Adopting a computer control system, controlled through multi-channel bus.
2. the equipment is formed through servo and pneumatic multi-station bending, and a single station can simultaneously bend multiple angles
3 it can simultaneously bend and shape steel wire, plastic wrapped steel wire, and weave into a grid.
4.Different conventional grid products can be fully automated by switching molds.
5. Modules can be flexibly customized according to different products of customers.


Wire Bending Machiner Video

Wire Bending Drawing

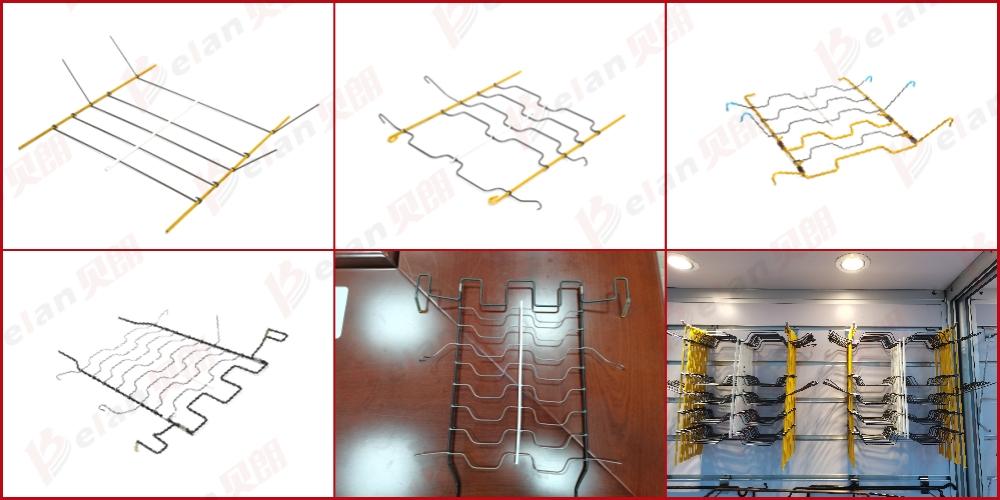

Wire Bending Drawing Products

Manufacturing Capacity

Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.

Honor Certification

Customer case

Belan wire bending machine customer case
