Dongguan Belan Automation Equipment Co., Ltd., focusing its core R&D strength and working under the guidance of engineers from a Bosch cooperative partner, spent one year successfully developing China’s first wiper linkage forming machine capable of completing horizontal bending, vertical bending, and torsional bending in a single forming process. This innovation has shattered foreign technical barriers and brought new opportunities for domestic automotive component manufacturers.
Solving the Industry’s Long-Standing Pain Point
Traditionally, spring machines used for wiper linkage bending could not perform the torsional bending process perfectly due to structural limitations. This was a major technical challenge in the industry.

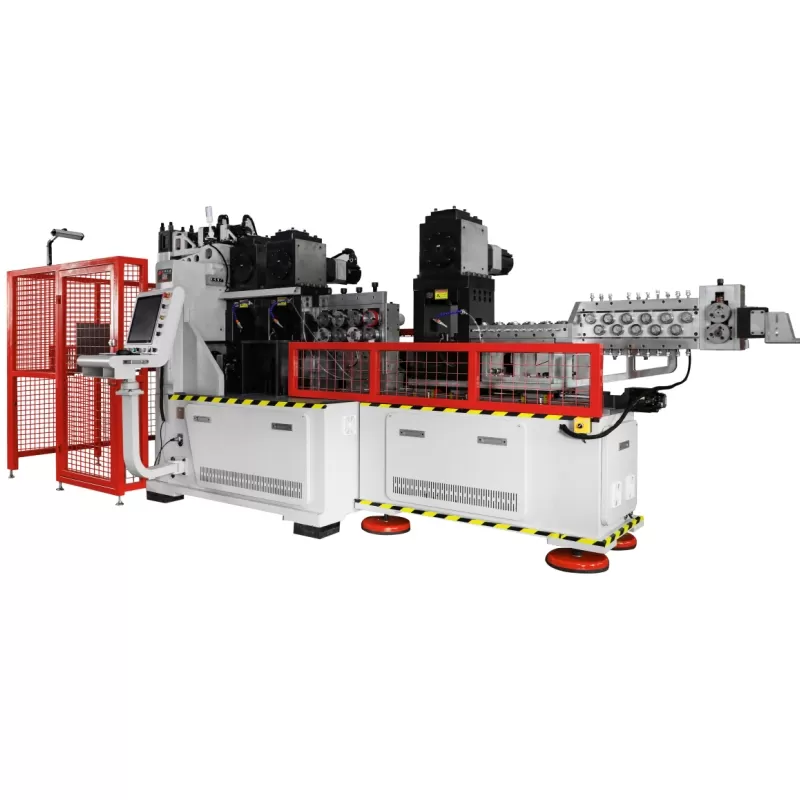

Belan Automation’s newly launched specialized wiper linkage forming machine changes the game — with synchronized inner and outer bending functions, it can easily achieve side bending, vertical bending, and torsional bending in one setup.
Key Features of Belan’s Wiper Linkage Bending Machine

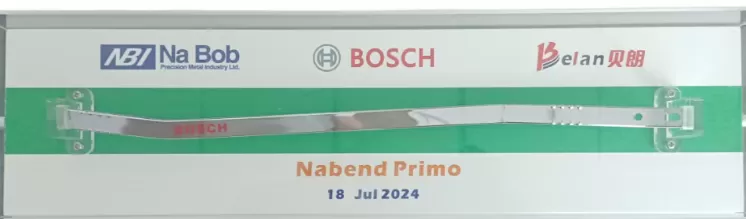

1.Burr-free Cutting – Cutting module with pre-pressing function to prevent burrs, ensuring smooth and clean cut surfaces.2.Integrated Forming Functions – Built-in embossing, punching, logo pressing, and deburring processes.
3.High-Precision Wire Feeding – Equipped with four sets of 120mm OD feeding rollers and encoder compensation for precise wire feeding.
4.Advanced Straightening Mechanism – Dual-direction straightening (horizontal and vertical, 11×2 configuration) with profiling bearings to match raw material characteristics, ensuring perfect straightness.
5.Efficient Material Handling – Auxiliary feeding device allows one operator to change materials easily. The double-head decoiler enables two coils to be installed simultaneously, minimizing downtime.
Proven Stability and Market Recognition
Since its launch, Belan’s wiper linkage forming machine has been in 24/7 continuous production at several major client factories for over two years, maintaining stable output and outstanding reliability.
A production director from a publicly listed automotive company in Shenzhen commented:
“This machine fully meets all our process requirements for wiper linkage bending. The product pass rate is nearly 100% (defect rate below 0.2‰). Compared with imported equipment, Belan offers much higher cost performance. This was a very successful investment!”

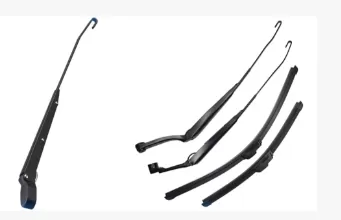

Beyond Wiper Linkages — Expanding the Boundaries of Wire Forming Technology
From EV copper and aluminum busbar bending to enameled copper wire laser stripping and forming, from automotive seat frame weaving to wiper linkage forming, Belan Automation continues to push the limits of China’s wire forming technology.
We look forward to working with more automotive parts manufacturers to create a new chapter in intelligent manufacturing.
