  • 4-12mm Flat Wire Forming Machine

    • 4-12mm Flat Wire Forming Machine

    Introduction：
    Introduction：
    The principle of the wire bending machine is that the line does not turn, the production is faster.
    The production line by 4.0-12.0mm, car seat frame steel wire parts and kitchen wire and other production tools.It's mainly used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

    GET A QUOTE

    Product Description

    Technical Parameters

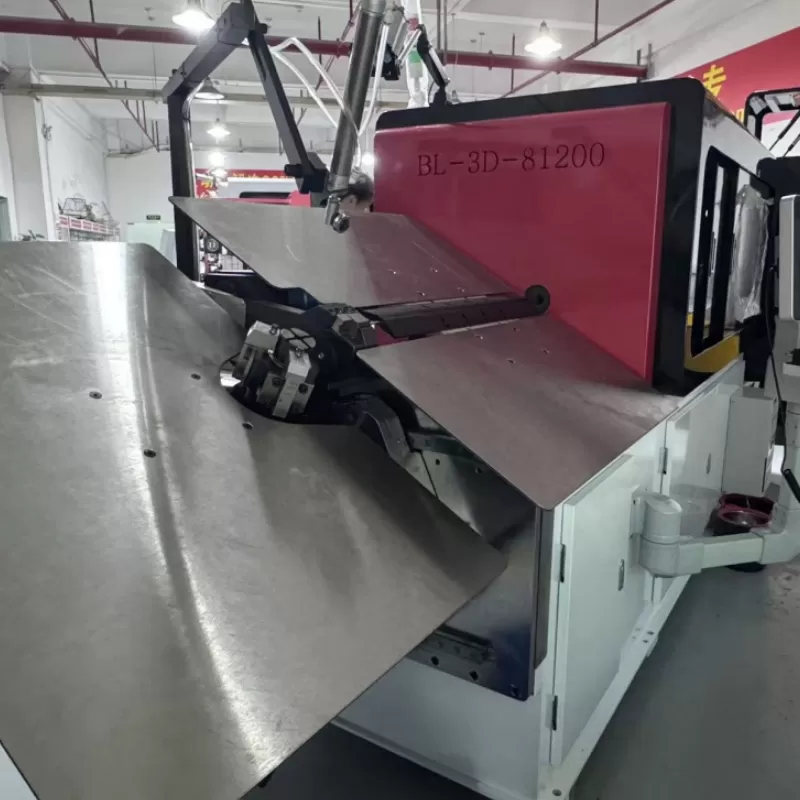

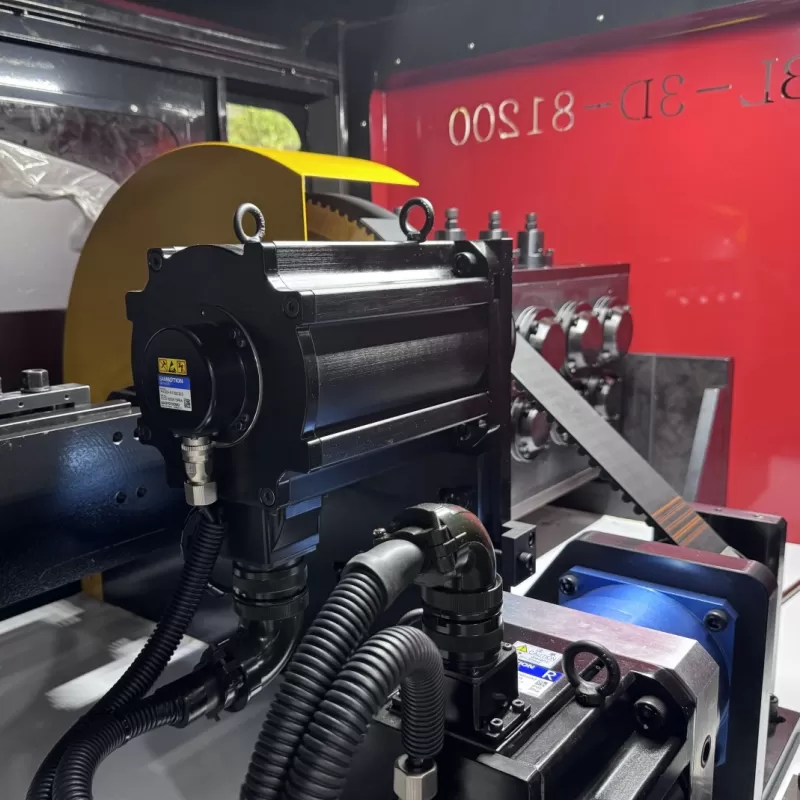

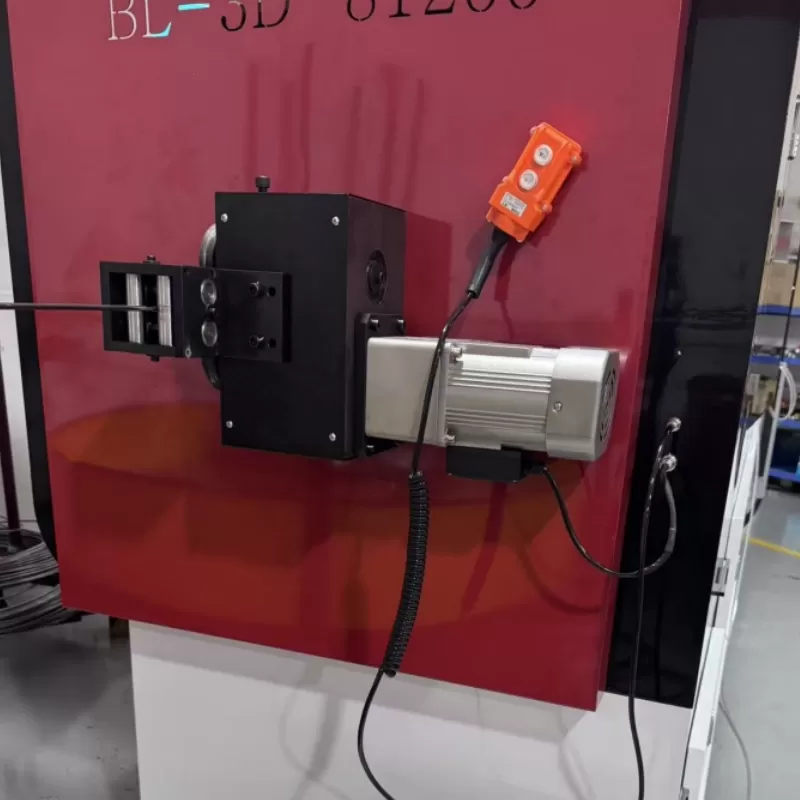

    Type BL-3D-81200 Parameter
    Applicable Wire Dia. Soft material Φ:4.0-12.0mm
    Hard material Φ:4.0-10.0mm
    Bending stroke 850mm
    Number of control Axis 8 Axis
    Total power 29KW
    Power Of wire turning Motor 7.5KW
    Power of wire feeding motor 4.5KW
    Power Of Angle control Motor 2.0KW
    Inner/outer angle motor power 4.5KW/4.5KW
    Power of the lifting motor for the pallet 2.0KW
    Power Of Wire Cuter Motor 2.0KW
    Left and right translation motor power 2.0KW
    Maximum wire feeding speed 40m/min
    Wire feeding accuracy 300mm±0.1mm
    Angle accuracy 90°±0.1mm
    Input Power 380V/50Hz/3Ph
    Machine Size(L*W*H) 3800KG
    Machine Size(L*W*H) 3800mm*1700mm*1600mm

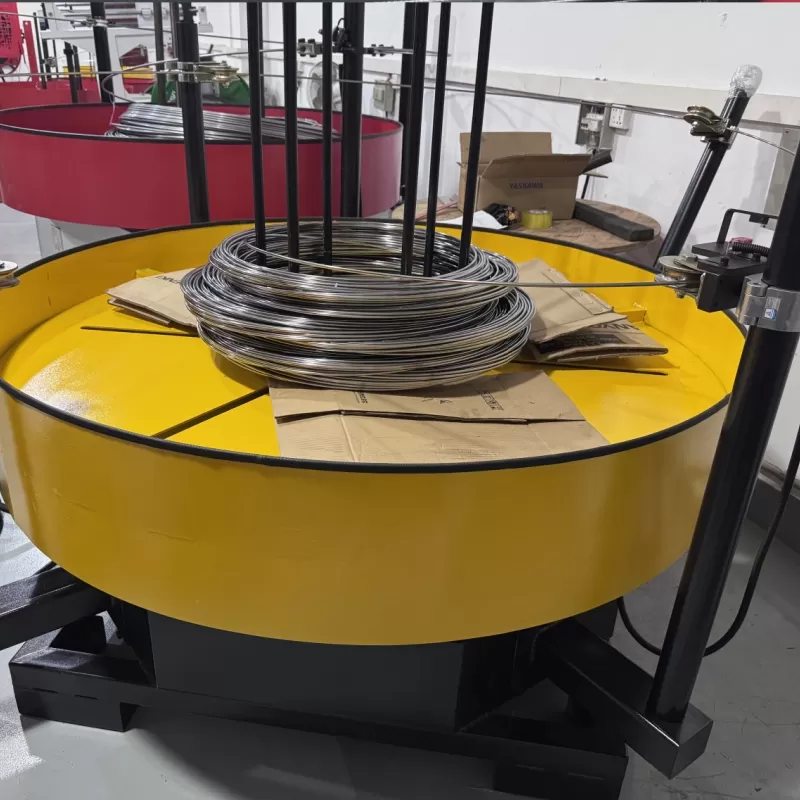

    Automatic feeder Maximum load Weight: 1500KG
    Size (L*W*H) 2100mm*2100mm*1300mm

    Product Advantages

    1、The principle of the wire bending machine is that the line does not turn, the production is faster.
    The production line by 3.0-12.0mm, car seat frame steel wire parts and kitchen wire and other production tools.
    2、There is a lifting platform in front, long and short linear products are suitable for production, the overall structure is very intuitive.
    3、Easy to debug, can be produced in the shape of plane and three-dimensional wire,
    4、Computer has Chinese and English language, easy to switch between export and domestic sales,flexible and convenient operation.

    Product Application

    Products are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

    Wire Bender Videos

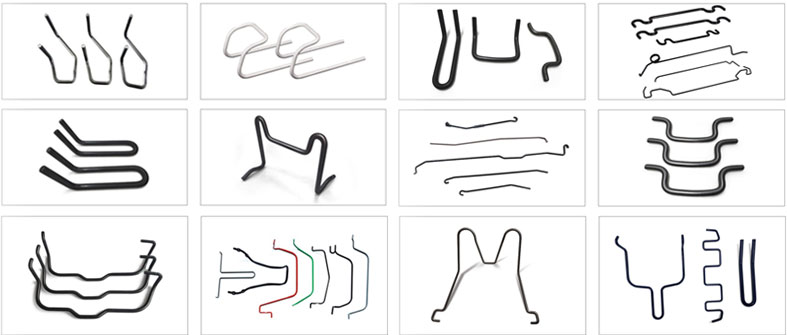

    Wire Forming Drawing

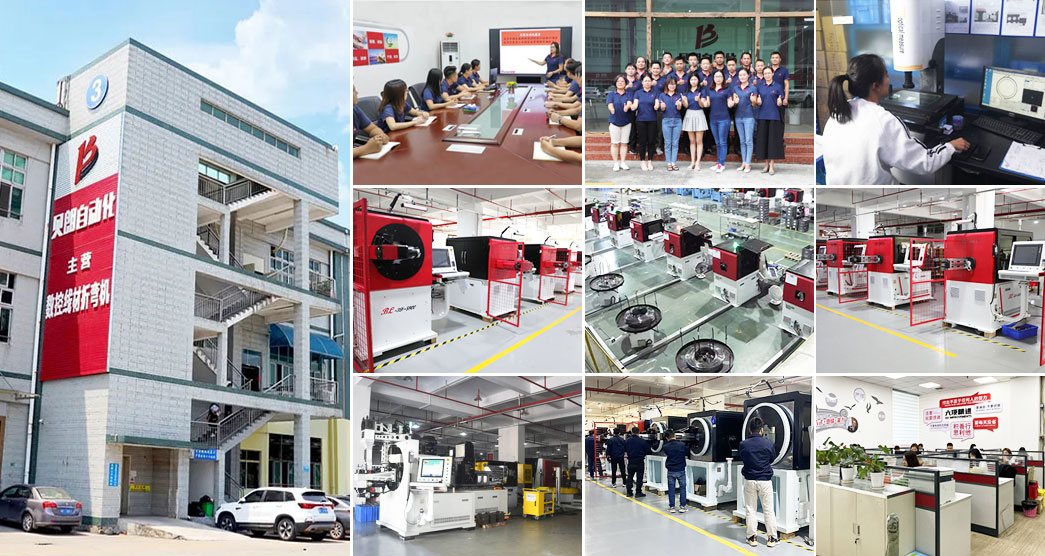

    Manufacturing Capacity

    Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
