Integrated CNC Solution for Enamelled Copper Wire Forming
The enamelled copper wire bending machine integrates mechanical stripping and multi-axis CNC bending into one automated system. The machine processes coil-fed enamelled copper wire directly without pre-cutting or offline stripping.
Online servo-controlled stripping removes insulation at selected positions, followed immediately by 2D or 3D bending forming. Different products can be switched by program without changing molds.
Main Processing Flow
Wire Feeding → Straightening → Servo Feeding → Mechanical Enamel Stripping → Dust Collection → CNC Bending → Cutting → Finished Product Collection
Optional functions: Online wire diameter inspection, surface defect detection, vision inspection, insulation testing, automatic tray loading.
Machine Structure and Layout
1. Wire Payoff System
Servo or passive payoff system with tension control to prevent wire tangling and ensure stable feeding.

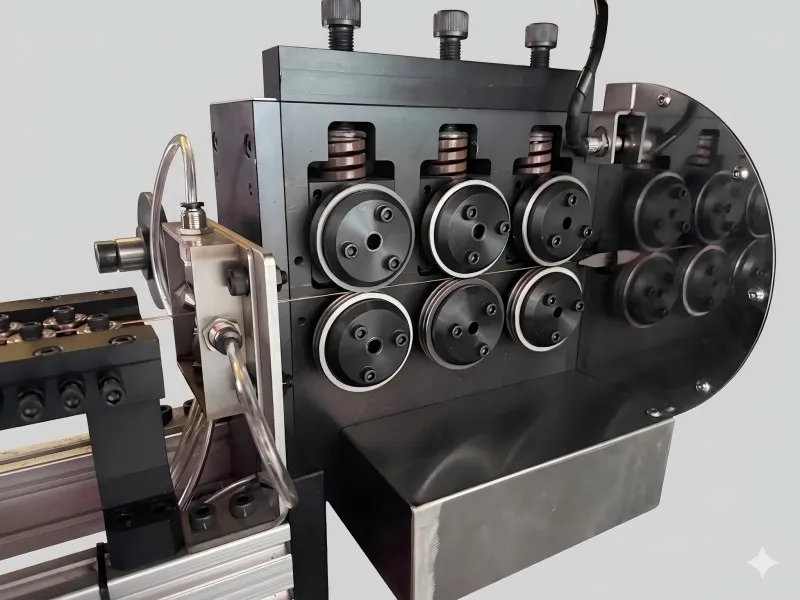

2. Precision Straightening Unit
Multi-roller straightening system removes wire memory stress and improves forming accuracy.
Suitable wire range: φ1.0–φ4.0 mm enamelled copper wire.
3. Mechanical Enamel Stripping Unit
Servo-controlled stripping removes enamel coating only at programmed positions and lengths.
Stripping methods:
- Rotary stripping head for round wire
- V-type scraper blade for flat wire and larger diameters
Closed dust collection system keeps the workshop clean.
Servo Feeding and CNC Bending System
Servo Feeding
Dual servo feeding rollers provide precise wire positioning and synchronized movement.

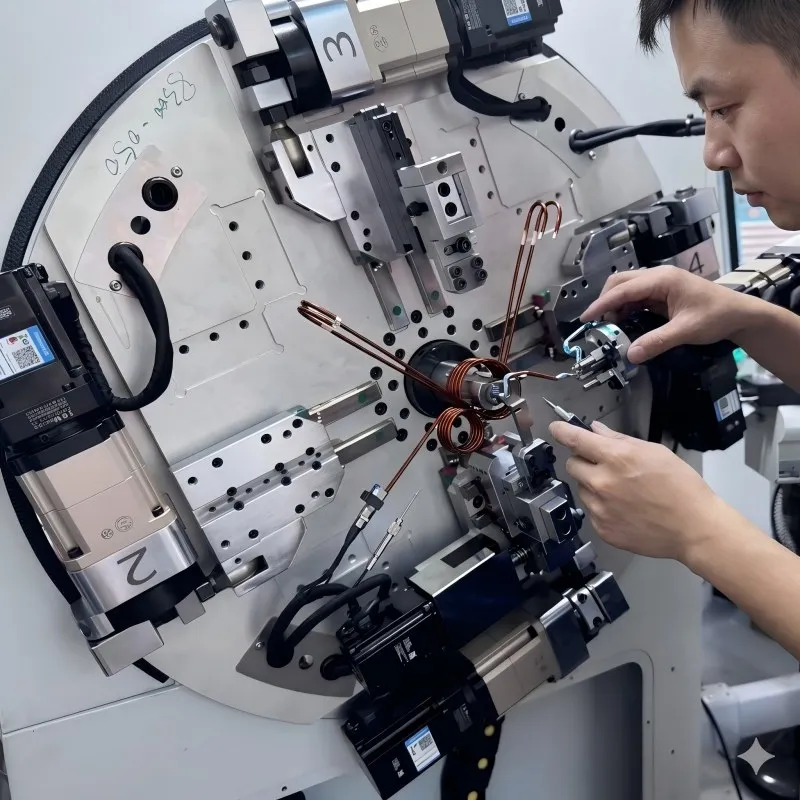

Multi-Axis CNC Bending
The rotary-head bending system supports both 2D and 3D bending applications with high angle accuracy.
Suitable for motor winding connectors, transformer copper wire parts, and irregular conductive components.
Automatic Cutting and Collection
Servo or pneumatic cutting ensures smooth cutting edges without damaging the enamel layer.
Finished products are automatically collected into trays or connected to robotic unloading systems.
Main Advantages
- Direct production from copper wire coil to finished product
- No chemical stripping or wastewater treatment required
- Supports stripping at any wire position
- No mold change needed for product switching
- One operator can manage multiple machines
Typical Applications
- EV motor winding connection wires
- Transformer copper connections
- Electrical cabinet conductive parts
- Inductor forming
- Irregular conductive copper components
- Flexible copper busbar alternatives
Recommended Models
- BL-3D-10300
- BL-3D-10500
Why Choose BELAN
BELAN provides CNC wire bending automation solutions for electrical, automotive, and industrial manufacturing industries.
- 2D and 3D wire forming experience
- Customized automation solutions
- CE-standard machine design
- Remote technical support
- Multi-language CNC operating systems
