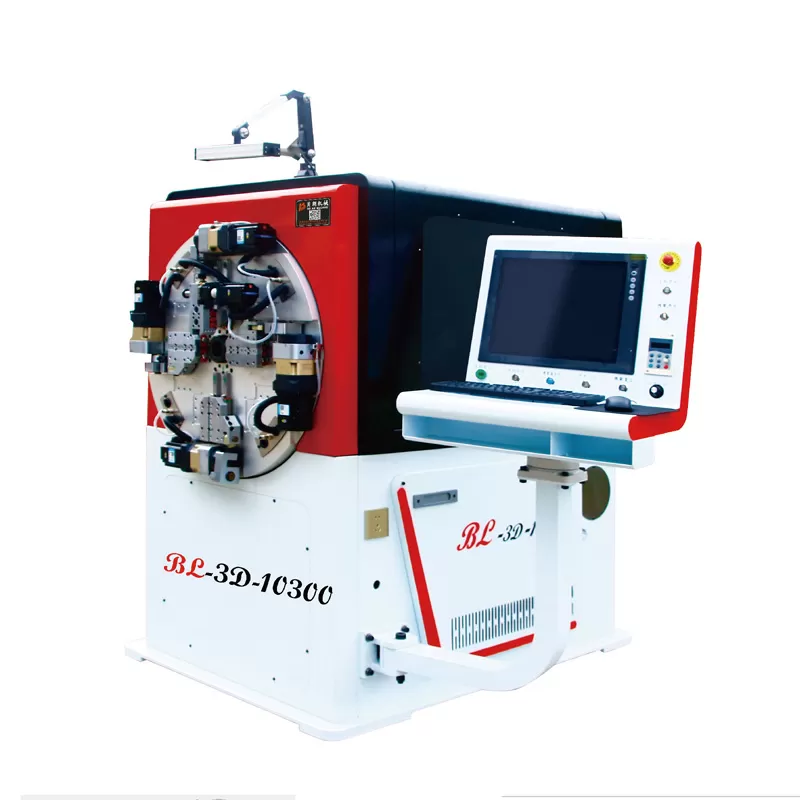

In today’s era of intelligent manufacturing, industries such as electronics, new energy, and automotive parts demand advanced equipment that combines precision, efficiency, and adaptability. Among these innovations, the Enameled Copper Wire Bending Rotary Table Machine has emerged as a reliable and cost-effective solution for processing precision wire components.

Integrated and Multifunctional Production

One of the machine’s greatest strengths is its all-in-one automation capability. Traditionally, bending enameled copper wires required multiple steps—straightening, de-varnishing, tinning, and shaping—often involving manual handling or secondary processes.

This machine integrates all these steps into one seamless operation:

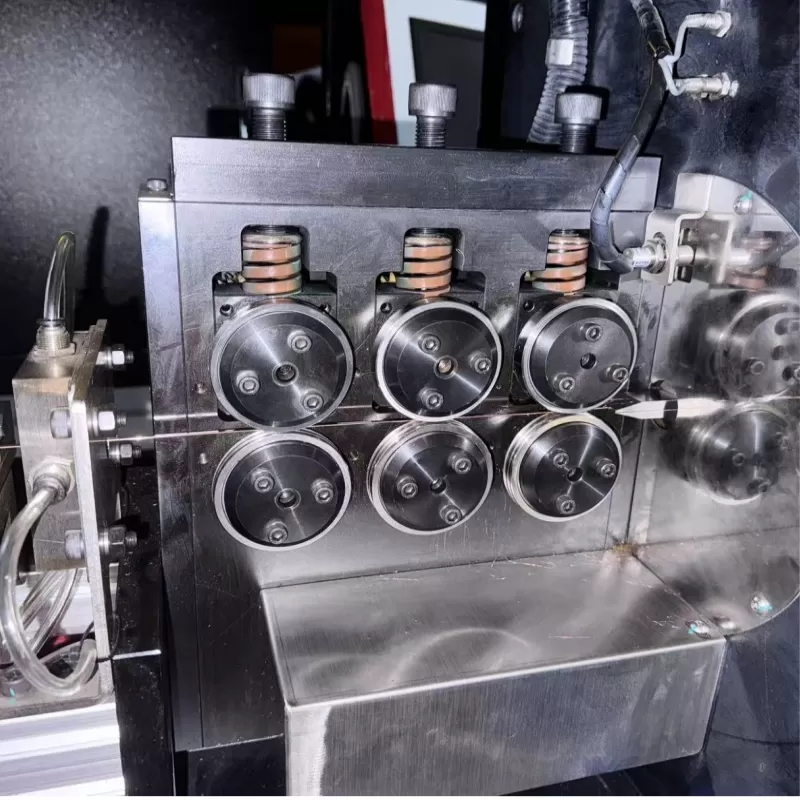

• Straightening the enameled wire

• De-varnishing and vacuuming for surface preparation

• Tinning and bending for reliable conductivity and precise forming

By combining these processes, the system eliminates manual intervention, reduces errors, and increases productivity. It supports copper wire diameters from 1.0 to 5.0mm, as well as hard material wires from 1.0 to 3.5mm, making it adaptable to a wide range of production needs.

High-Precision Control with User-Friendly Operation

At the heart of the machine is an imported servo system and planetary reducer drive, ensuring bending accuracy as tight as ±0.05mm. For manufacturers dealing with high-performance electronic components or motor parts, this level of precision ensures consistent quality and reduced risk of assembly issues.

The machine is equipped with a computerized interface that stores multiple parameter settings. This means manufacturers can switch between product types with minimal downtime, significantly improving flexibility in small- to medium-volume automated production.

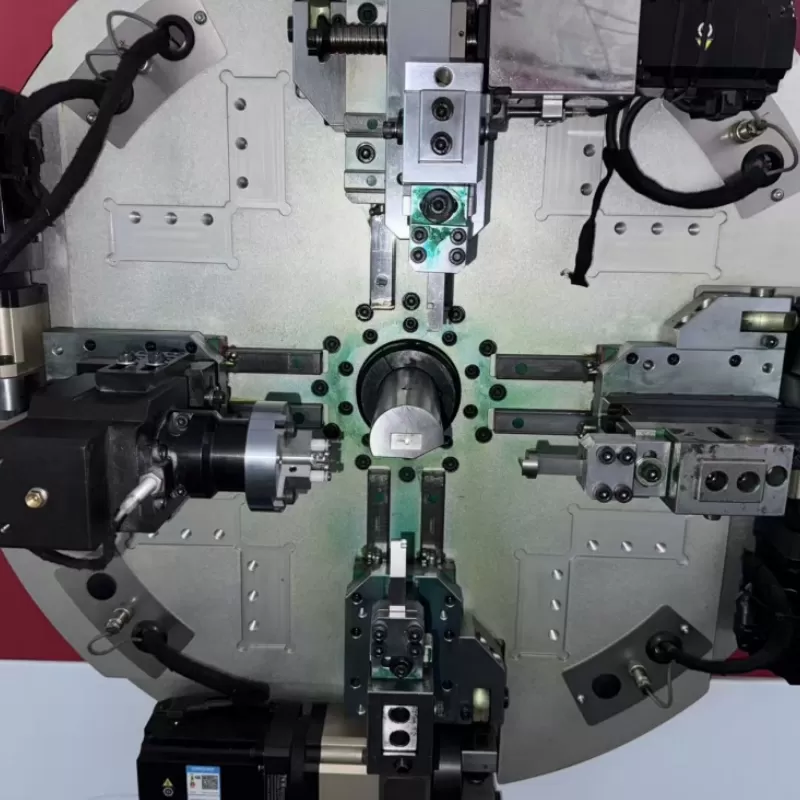

Rotary Table Design for Flexibility and Cost Savings

Unlike traditional bending equipment that requires frequent mold changes, this rotary table machine offers a 320° free rotation and a modular mold design.

• One set of molds is sufficient for products with the same wire diameter.

• Product shape adjustments can be programmed directly through the interface, eliminating the need for costly mold replacements.

• The result: lower production costs and faster response to diverse customer requirements.

This design not only enhances adaptability but also reduces maintenance and operational expenses.

Product Forming Capabilities

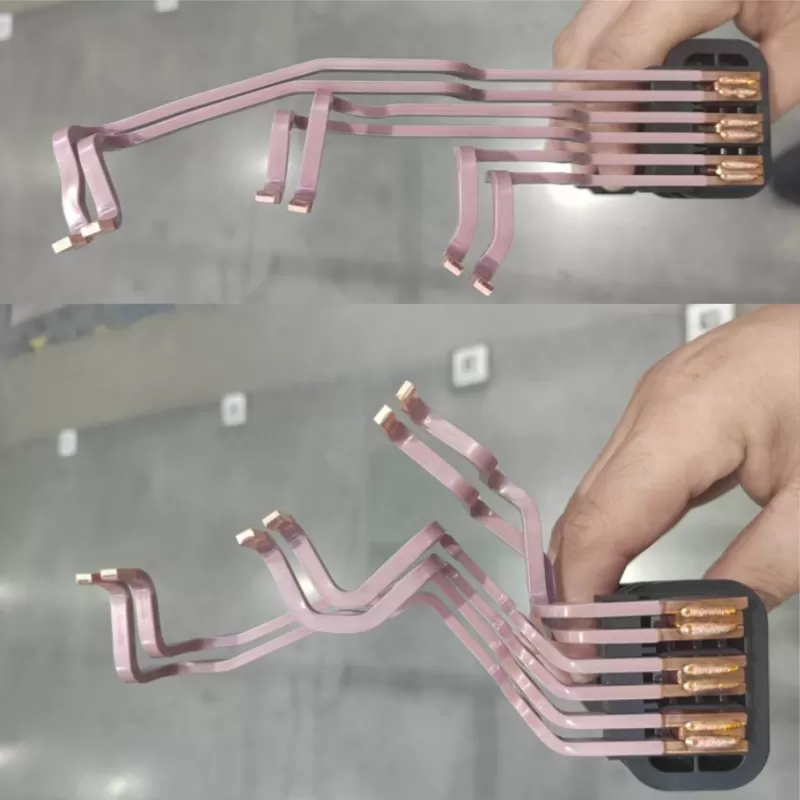

The core function of the machine is customized shape forming. It can bend enameled copper wires into L-shaped, U-shaped, Z-shaped, and complex 3D structures, meeting the spatial requirements of:

• Electronic relays

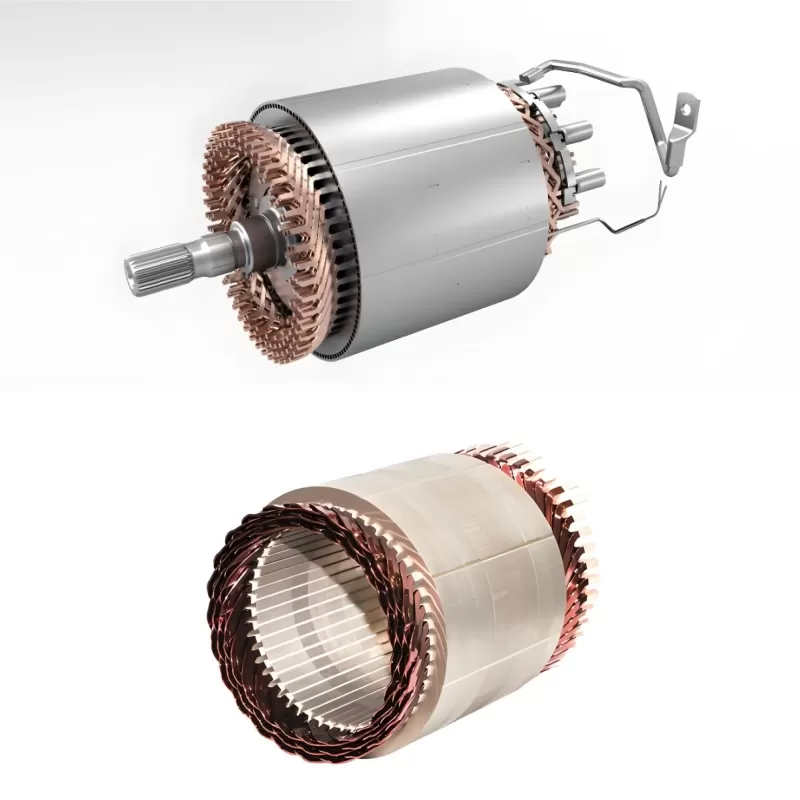

• Motor components

• Automotive connectors

• Battery modules and inverters

By enabling components to be pre-formed to exact specifications, the machine improves assembly efficiency. Busbars or enameled wires can be directly aligned with installation points, reducing manual adjustments and minimizing assembly errors.


Key Technical Requirements for Reliability

To ensure durability and performance, the machine is engineered to meet strict technical standards:

• Bending angle tolerance: controlled within ±0.5° to avoid misalignment and stress concentration

• Bend position accuracy: typically ±0.1mm, crucial for high-voltage or compact assemblies

• Surface protection: the bending die avoids scratching the wire’s insulation or coating, preventing corrosion

• Crack prevention: high-precision control minimizes tensile stress during bending, ensuring material integrity

These features make the system an ideal solution for high-reliability industries where precision is critical.

Application Fields: Driving Innovation Across Industries

The versatility of the Enameled Copper Wire Bending Rotary Table Machine makes it valuable in multiple sectors.

New Energy and EV Industry

• Processing wires and busbars for battery modules and high-voltage distribution

• Ensuring conductivity, compact design, and safety in the three-electric system (battery, motor, electronic control)

Electronics Manufacturing

• Precision forming of wires for relays, sensors, and circuit assemblies

• Supporting the growing demand for compact and high-performance electronic components

Automotive Components

• Bending enameled wires and connectors for electric motors and control systems

• Supporting lightweight, energy-efficient designs in modern vehicles


A Future-Proof Forming Solution

With its stable structure, low noise operation, and cost-effective performance, the Enameled Copper Wire Bending Rotary Table Machine is more than just bending equipment—it is a future-oriented solution for smart factories.

By combining precision, automation, and adaptability, this machine helps manufacturers keep pace with the evolving demands of the new energy, electronics, and automotive sectors. Whether for small-batch customization or medium-scale automated production, it delivers the flexibility and reliability that modern industries need.
