BL-3D-5800 Rotary Head Wire Bending Machine | 5-8mm Shelf Hook Production Israel Delivery Case

BL-3D-5800 Rotary Head Wire Bending Machine | Full Export Delivery Case to Israel for 3-8mm Shelf Hook Manufacturing

Shelf hooks serve as core accessories for supermarket and warehouse storage racks, mainly manufactured from 3-8mm carbon steel wire and galvanized wire. Strict requirements are placed on dimensional consistency after bending and structural load-bearing capacity. Numerous warehouse hardware manufacturers across Israel adopt CNC precision forming equipment for mass hook production.

Recently, one set of BL-3D-5800 rotary head wire bending machine has finished overall cleaning, vacuum bag sealing and solid wooden crate reinforcement for export packaging, fully shipped to an Israeli customer specialized in shelf hook production. This machine is custom-built for mass production of 3-8mm wire shelf hooks. This article elaborates on technical parameters, core strengths, shelf hook processing adaptability and standardized overseas packaging procedures, offering reliable reference for wire processing manufacturers worldwide to select wire forming machinery.

1. Detailed Technical Parameters of BL-3D-5800 Rotary Head Wire Bending Machine

The biggest highlight of this rotary head wire bending machine lies in its 320° rotating bending head, with wire fixed without rotation. Its stability for 3D stereo forming far exceeds traditional flat wire bending devices. The specifications of BL-3D-5800 perfectly match the production demands of 3-8mm shelf hooks:

Core Parameter List

1. Axis Configuration: 5-axis servo CNC system, multi-axis synchronous bending, one-step forming for all S-type, C-type and irregular custom shelf hooks

2. Applicable Wire Diameter: 3.0-8mm for soft steel wire; 3.0-6mm for hard wire, fully covering the whole 5-8mm specification range for customer shelf hook production

3. Servo Power Allocation: Wire feeding servo 4.5KW, rotating arm servo 2.7KW, cutting knife servo 1KW. Sufficient power prevents slipping and deformation during thick wire bending

4. Wire Feeding Structure: 3 groups of high-precision feeding rollers for smooth wire straightening; feeding accuracy tolerance ≤ ±0.1mm

5. Control System: Bilingual English-Chinese touch CNC panel; hundreds of hook forming programs can be stored, one-click recall for quick style switching

6. Applicable Raw Materials: Galvanized iron wire, carbon steel wire, stainless steel wire, compatible with mainstream raw materials for warehouse shelf hooks

The whole machine is certified with TUV CE, complying with industrial equipment access standards for EU and Middle East regions, enabling smooth customs clearance. It is a mainstream model widely purchased by wire hardware processing plants in Israel and other Middle Eastern countries.

2. Five Core Advantages of BL-3D-5800 Wire Bending Machine for Mass Shelf Hook Production

For Israeli factories engaged in long-term batch shelf hook manufacturing, equipment stability, productivity and finished product yield directly determine production costs. This rotary head wire bending machine is optimized targeted for mass hook fabrication:

2.1 Zero Dimensional Deviation for Stereo Hook Forming

Adopting the mature structure of rotating head + stationary wire, the wire will not twist or deflect when processing U-shaped hooks, curved hangers and multi-layer bent shelf hooks. Uniform hook opening size and bending angle are guaranteed in mass production, with excellent rack assembly compatibility. It thoroughly solves the common defects of uneven dimensions caused by manual bending and outdated conventional machines.

2.2 25% Higher Production Efficiency Than Peer Equipment

Equipped with high-speed servo motors for fast continuous bending cycles, tens of thousands of standard shelf hooks can be produced per day. Operators can modify programs and adjust bending speed during running without altering bending angles, greatly shortening mold change & style debugging time.

2.3 Durable Core Components & Hassle-free Overseas After-sales Maintenance

Vulnerable parts including gears, main shafts and bearings adopt original Taiwan precision accessories. The machine body features thickened reinforced steel structure, stable for 24/7 non-stop mass production with low failure rate. Built-in IoT remote module allows Israeli customers to check equipment operating status via mobile phones and receive online remote debugging from our technicians, breaking geographical restrictions for after-sales service.

2.4 Universal Compatibility for Complex Custom Hook Shapes

Besides standard straight bar hooks and S hooks, the machine can integrally form load-enhanced shelf hooks with circular arcs and multiple bends. Smooth small-radius arc bending avoids wire cracking, and finished hooks meet load standards for commercial storage racks to support customers undertaking diversified hook orders.

2.5 Low Operation Threshold, Quick Worker Onboarding

Intuitive CNC interface enables automatic program generation by importing hook drawings, no senior skilled operators required. Ordinary workers at Middle East factories can independently operate the machine after simple training, effectively cutting factory labor expenditure.

3. Three-Layer Standardized Export Packaging Process Adapted to Israel Ocean Shipping

Israel borders the Mediterranean Sea; long-distance ocean transport brings severe risks including high salt fog, humidity and violent vibration, which easily lead to machine rust and loose components. This shipment strictly follows Middle East industrial equipment export norms with 3-tier protective packaging:

Step 1: Overall Deep Cleaning & Anti-rust Treatment Before Delivery

Our technicians thoroughly remove oil stains and metal debris on the whole machine. Special anti-rust grease is coated on guide rails, servo rotating shafts and bending molds to eliminate residual impurities that cause metal corrosion during maritime transit, ensuring the machine can be debugged and put into production immediately upon arrival in Israel.

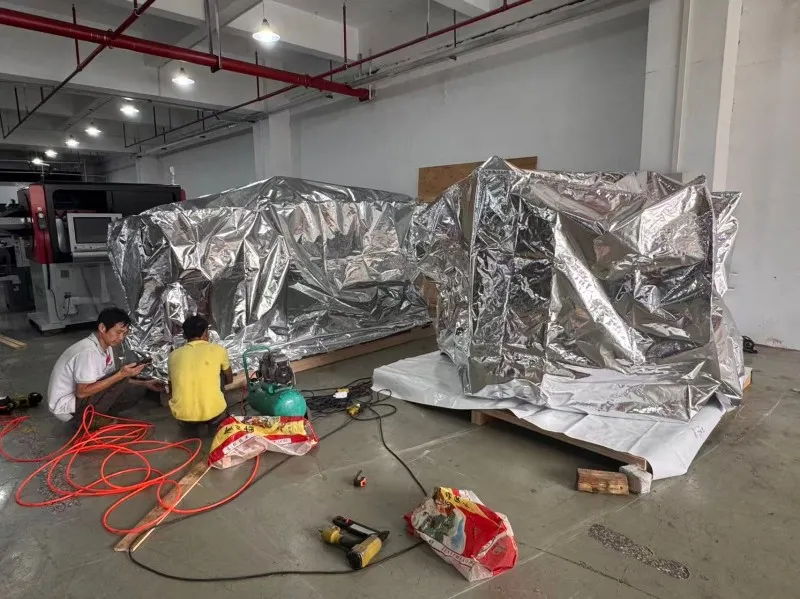

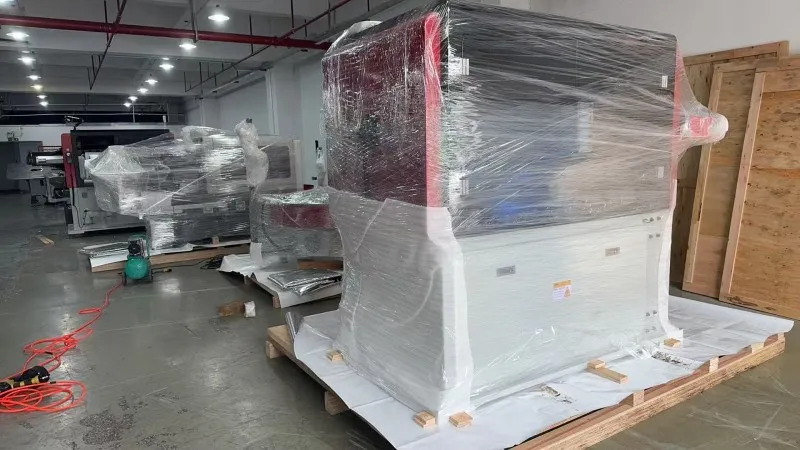

Step 2: Vacuum Bag Sealing for Moisture & Salt Fog Isolation

After cleaning, the whole machine is wrapped with thick anti-static vacuum moisture-proof bags, fully vacuum-sealed with abundant desiccants placed inside. This inner-layer barrier blocks maritime moisture and salt fog to prevent precision metal parts from rusting, an indispensable procedure for CNC machinery ocean shipment.

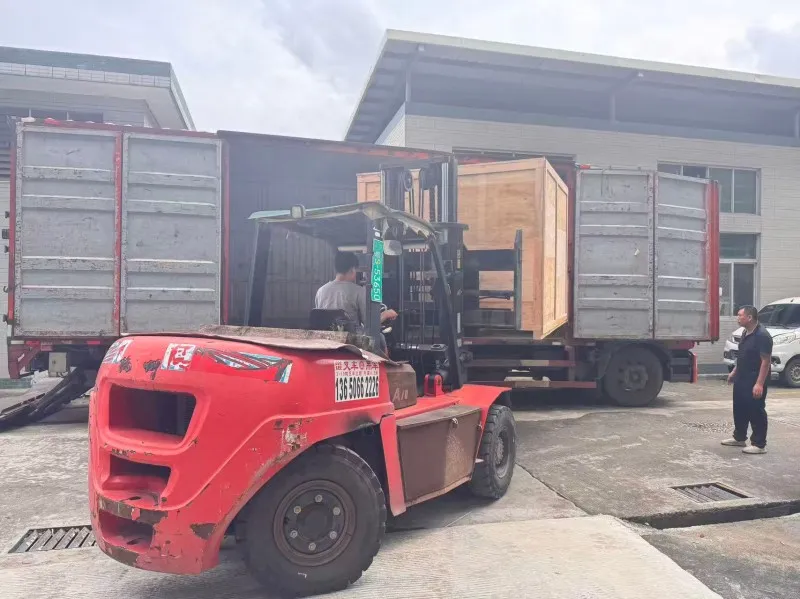

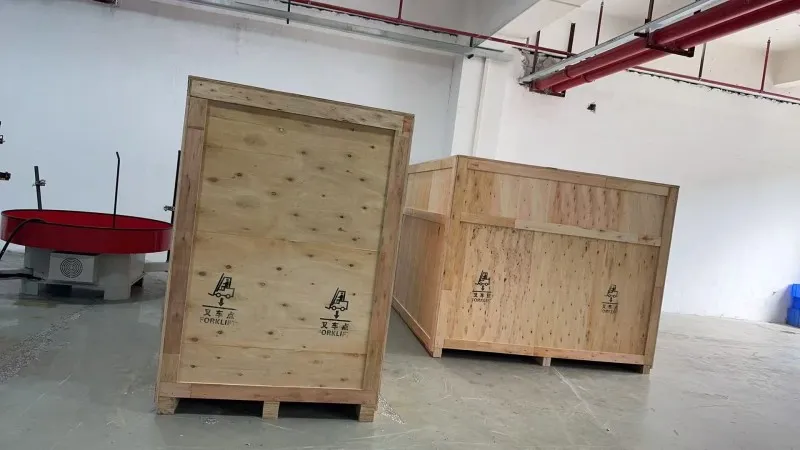

Step 3: IPPC Fumigated Solid Wooden Crate Reinforced Packaging

After vacuum wrapping, the machine is packed into heat-treated & fumigated solid export wooden crates with official IPPC (ISPM 15) phytosanitary marks:

1. Pearl cotton and buffer foam filled around the crate interior; the machine is firmly fixed with wooden wedges at the bottom to avoid displacement and collision during shipping vibration

2. Outer crate wrapped with multi-layer stretch film, printed with international universal shipping marks: This Side Up, Keep Dry, Fragile, Lifting Points

3. Steel strapping fastened around the crate with anti-collision corner protectors installed on all edges. Fully compliant with Israeli customs wooden packaging quarantine regulations to prevent cargo detention or return.

The robust whole packaging effectively withstands bumping and loading/unloading throughout long-distance overseas ocean transportation.

4. Overseas Selection Guide for Rotary Head Wire Bending Machines

Driven by continuous expansion of warehousing and supermarket industries across the Middle East, orders for shelf hooks and metal wire hardware accessories keep growing year by year. Many processing plants in Israel and surrounding Middle Eastern countries are upgrading automated wire forming equipment.

If your factory focuses on manufacturing 3-8mm wire shelf hooks and metal wire crafts, BL-3D-5800 rotary head wire bending machine delivers outstanding cost performance: wide wire diameter coverage, stable forming precision, complete remote after-sales service, CE certification for hassle-free Middle East customs clearance, and standardized seaworthy packaging to eliminate shipping damage risks.

We can customize molds and control programs according to customers’ wire materials and hook drawings. Full machine running tests are conducted before shipment. After delivery, we provide one-stop services including on-site installation, commissioning and worker operation training, helping overseas wire factories build fully automatic shelf hook production lines.


Conclusion

The successful packaging and shipment of BL-3D-5800 rotary head wire bending machine to the Israeli shelf hook producer fully verifies reliable performance recognition from overseas markets, and delivers a mature integrated solution covering equipment selection + standardized export delivery for more Middle Eastern wire processing manufacturers.

Belan Machinery specializes in automotive wire forming solutions. Feel free to contact us for customized wire bending machinery, detailed quotations and export packaging specifications to obtain your exclusive production solution.
