Selection Guide for CNC Wire Bending Machines for Automotive Seat Frames & Foamed Steel Wires: Matching Solutions of 6 Dedicated Models

Pain Points of Equipment Selection in Automotive Wire Parts Production

In the mass production of auto parts, wire components including seat frames, foamed steel wires, double serpentine springs and wiper arms require extremely high forming precision, product consistency and stable mass production performance. Ordinary general wire bending machines feature poor process adaptability, which easily causes dimensional errors, unstable forming of ultra-long workpieces, complicated mold replacement and debugging, high defect rates and other issues, failing to meet the quality inspection standards of vehicle manufacturers and auto parts suppliers.

To balance product quality, production efficiency and manufacturing cost, manufacturers must select industry-specific CNC wire bending machines for automotive wires according to their own product structures, processing techniques and production capacity modes. This article adopts standardized selection logic together with six dedicated Belang models to help factories match suitable equipment quickly and accurately.


Three Core Judging Standards for Selecting Automotive Wire Bending Machines

1. Select Equipment Based on Product Structure & Size

Rotary-head 3D bending machines are suitable for complex irregular and 3D stereo seat frames. Double-head synchronous bending models are mandatory for ultra-long foamed steel wires over 1m, long rear seat steel wires and double serpentine springs. Special process equipment is required for mesh backrest frames, slim wiper arms and headed rods, as standard single-head machines cannot meet forming requirements.

2. Select Equipment Based on Forming Process Complexity

Rotary-head 3D wire bending machines are ideal for products with multiple curved surfaces and multi-angle 3D bending. Double-head bending machines are preferred for parts requiring synchronous forming on both ends and one-step blanking of ultra-long wires. Integrated heading & bending all-in-one machines are required for support rods combining bending and cold heading processes. Special weaving machines are configured for continuous woven seat backrest frames.

Detailed Application Scenarios of 6 Dedicated Automotive Wire Bending Machines

1. BL-3D-5800/6800 Rotary Head Wire Bending Machine

It is applicable to various complex 3D stereo automotive seat frames and special-shaped support steel wires. Adopting head-rotating and wire-fixed structure, it realizes flexible multi-axis linkage forming with convenient debugging. It is perfectly suitable for new product sampling and small & medium-batch production of multi-specification automotive wires.

2. BL-2T-15600 Double Head Wire Bending Machine

Focused on ultra-long wire forming, it can process 1–3.6m foamed steel wires, long rear seat steel wires and double serpentine springs. Synchronous bending on both ends realizes one-step forming and doubles production efficiency, making it the mainstream model for mass production of long automotive wire parts.

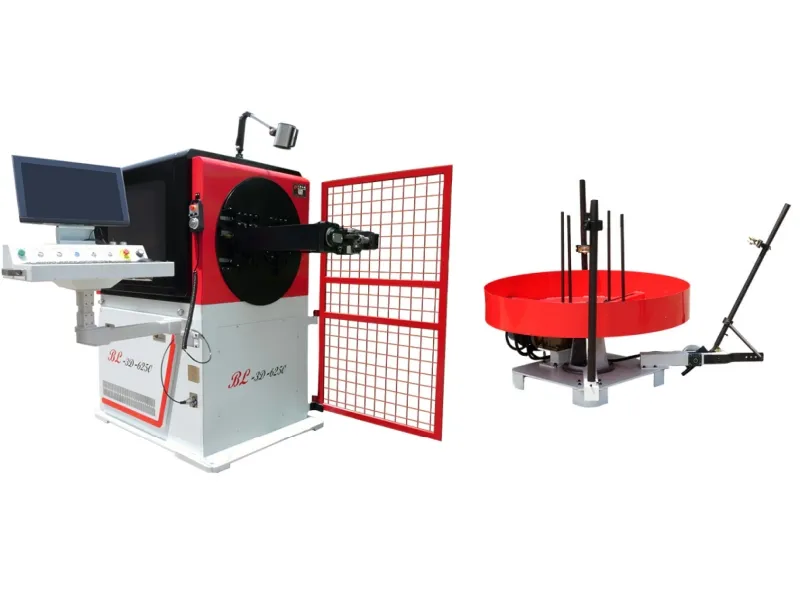

3. BL-3D-6250 Automotive Foamed Steel Wire Bending Machine

Specially optimized for seat foamed serpentine springs, it delivers high straightening accuracy, stable forming tracks and fast model changeover. Customized for standardized mass production of automotive foamed steel wires, it features high cost performance and reliable long-run production stability.

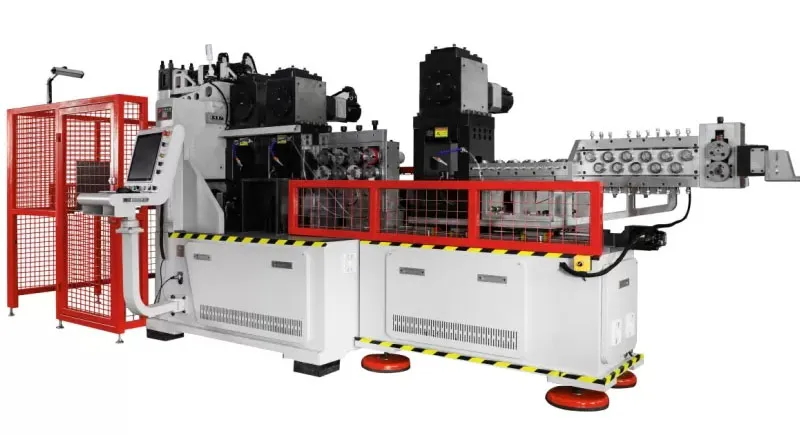

4. BL-YG-12Y Automotive Wiper Arm Forming Machine

It solves common processing defects of slender arms including unstable feeding, poor straightness, serration processing, logo marking, punching and bending deformation. Custom-made for wiper arms and thin connecting rods, it maintains consistent forming precision and supports dedicated production lines for automotive wiper components.

5. BL-3DDT-51200 Integrated Heading & Bending Machine

The machine integrates cold heading and wire bending functions to complete finished headed automotive support rods and connecting fittings in one single process. Secondary transfer and processing between separate machines are eliminated, significantly simplifying working procedures and cutting labor costs.

6. BL-WG-2030S Automotive Seat Back Frame Weaving Machine

Designed exclusively for continuous woven forming of mesh automotive seat back frames. One-piece integrated forming removes secondary welding and guarantees high consistency of finished parts, ideal for mass production of high-end automotive seat frames.


Key Hardware Inspection Standards for Equipment Procurement

After confirming the target model, three core hardware configurations must be strictly inspected to guarantee stable long-term mass production.

1. The CNC system must support multi-axis linkage and offline simulation, achieving high-precision repetitive feeding positioning of 300±0.1mm and bending angle accuracy within ±0.2°.

2. Equipped with brand servo drive systems to support 24-hour uninterrupted production with low failure rates.

3. Verify the machine’s applicable wire diameter range, feeding precision and load parameters to match your soft and hard wire raw materials and prevent precision degradation during long-term operation.

Common Misconceptions in Automotive Wire Equipment Selection

Many manufacturers adopt general 2D bending machines to produce 3D seat frames, leading to high scrap rates and unqualified products failing quality inspection. Using single-head bending equipment for ultra-long foamed steel wires results in severe insufficient production capacity. Separating heading and bending into two independent machines creates redundant procedures and raises overall manufacturing costs. Choosing dedicated special models can completely avoid all above mass production pain points.

Conclusion

The six series of dedicated wire bending machines cover all mainstream forming scenarios of automotive wire components. Manufacturers can select matched equipment accurately according to product length, structural features, processing technology and daily production capacity.

Belan Machinery – Professional Automotive Wire Forming Solution Provider

Belan Machinery provides customized full-set forming solutions for automotive metal wires. If you need tailored production layout schemes or prototype testing services, please contact our professional technical team at any time.
