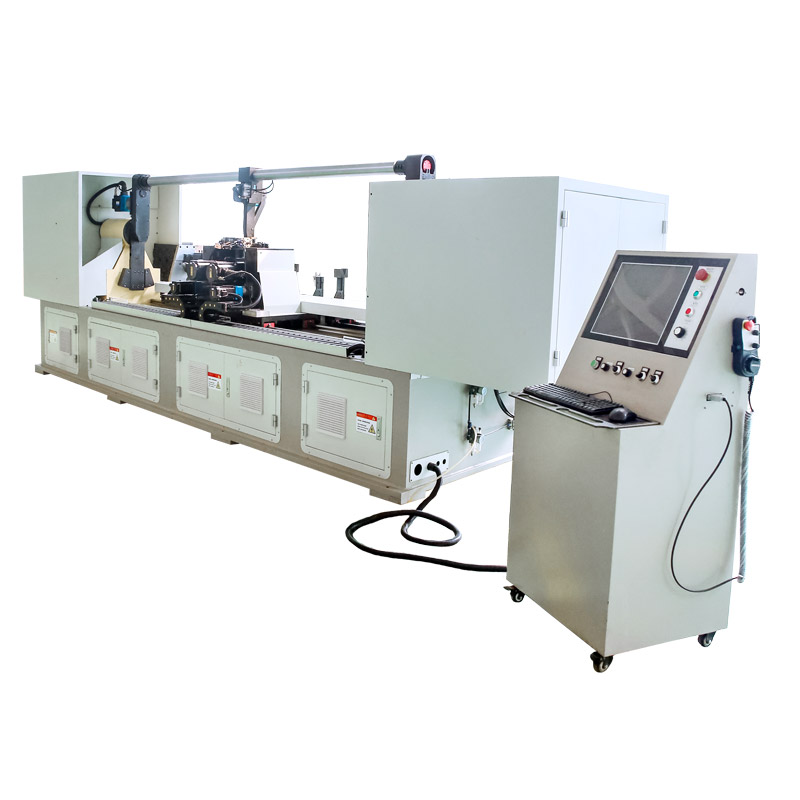

Product Description
Technical Parameters
| Type | BL-2T-15600 Parameter |
| Applicable Wire Dia. | Soft material Φ:3.0-6.0mm Hard material Φ:3.0-4.5mm |
| No. of Axis | 15 Axis |
| total power | 28.5KW |
| Feeding wire power | 2.9KW |
| Clamping wire moving power | 2.0KW |
| Rotating arm power | 1.5KW*2 |
| Rotating boom power | 2.9KW*2 |
| Fold angle moving (left/right) | 2.9KW*2 |
| Fold angle lift (left/right) | 1.0KW*2 |
| Inner turning angle (left/right) | 1.5KW*2 |
| External turning angle (left/right) | 1.5KW*2 |
| Cutter power | 1.0KW |
| Input Power | 3AC 380V/50HZ |
| Weight of Machine | 5500KG |
| Size (L*W*H) | 5000mm*1500mm *1600mm |
| Maximum load weight of automatic wire feeder: | 1000KG |
Product Advantages
1. Taiwan Operation system and Imported Servo motor.
2. Computer has Chinese and English Language,Easy use. All motor can be controlled together or individual.
3. Self Checking System is include in the Machine,Machine can be stopped if machine found there is unqualified product.
4. During production,Operation can change any sizes on computer.
5. The Lubricating Oil Supply system can make sure Machine Long time running.
6. If machine find out there is no more wire,Wire Break or Kinking Wire,machine will stop automatically.And Our machine can be speed up automatically once machine is running in good condition.
7. Our machine is good for products in following industries:Car seats skeleton,skeleton visor,car door lock rod,wire arts and crafts,kitchen utensils,tableware and other Wire Foaming.Mainly for the auto parts industry produce car seat rear steel wire,car double snake- shaped spring.As well as bending long quadrilateral frame and a variety of symmetrical or asymmetrical long piece of wire products.Significant speed and high stability than traditional single-head equipment.
Product Application
Products are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.
Wire Bending Machiner Video
Wire Bending Drawing
Manufacturing Capacity
Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
