3D Wire Bending Machines Φ3.0-16.0mm

3D wire folding & bending machines for processing wire up to 16 mm diameter, plates, and bars.

Turning Wire Bending Machine BL-3D-51200 Turning Wire Bending Machine BL-3D-51200

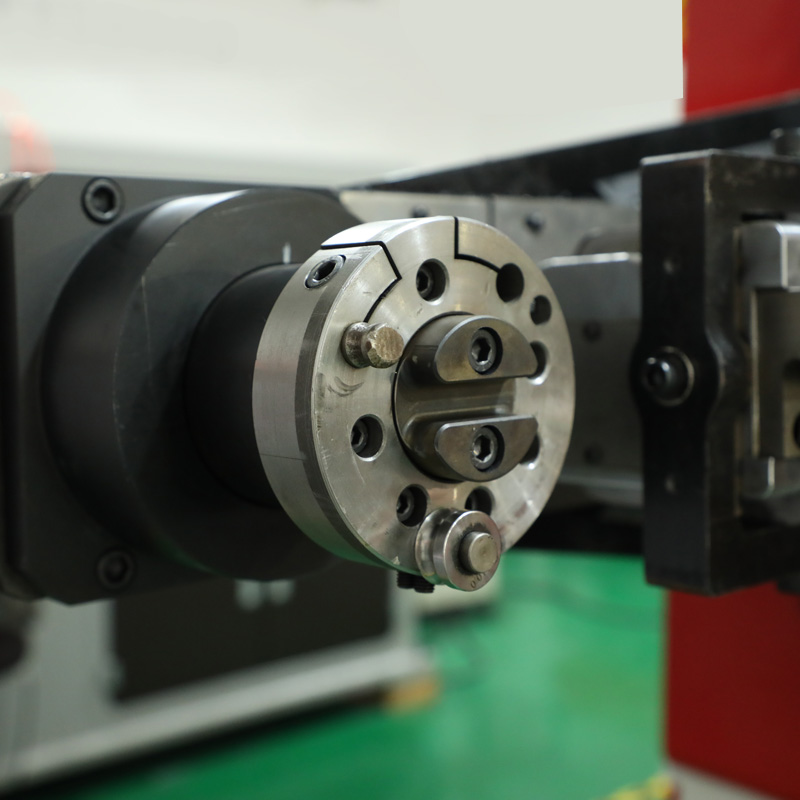

Turning Wire Bending Machine Turning Wire Bending Machine

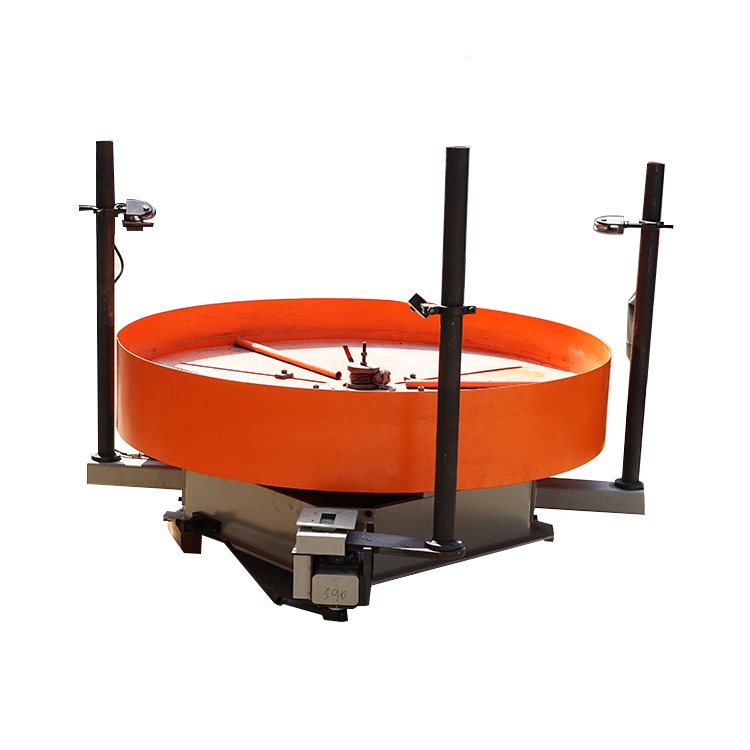

WireFeeding Rack WireFeeding Rack

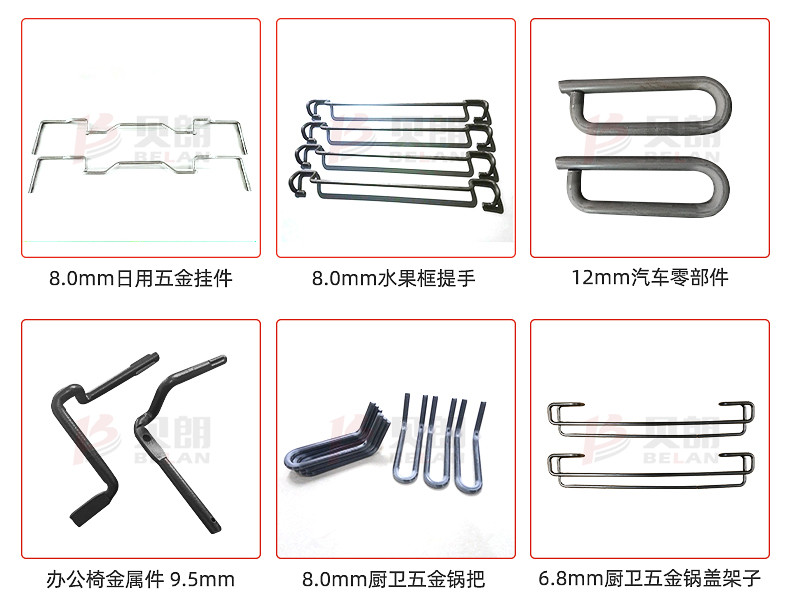

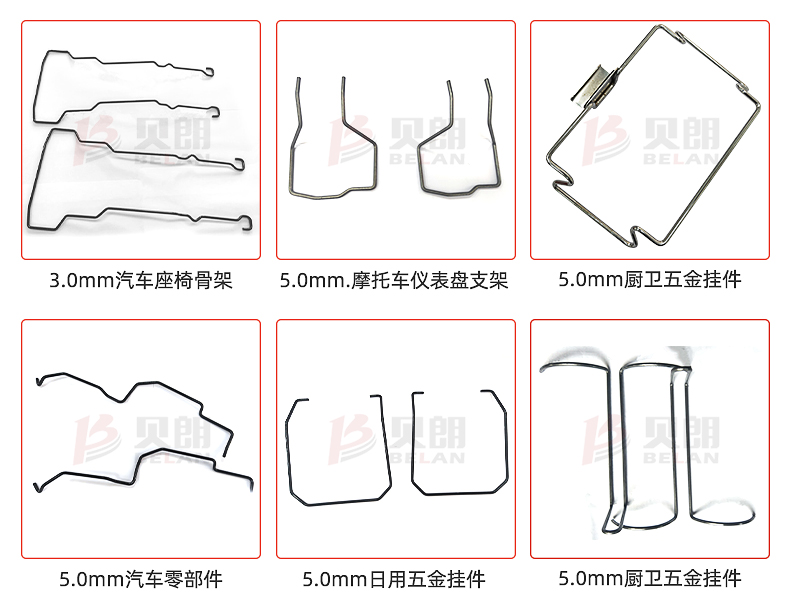

Turning Wire Bending Machine Samples Turning Wire Bending Machine Samples

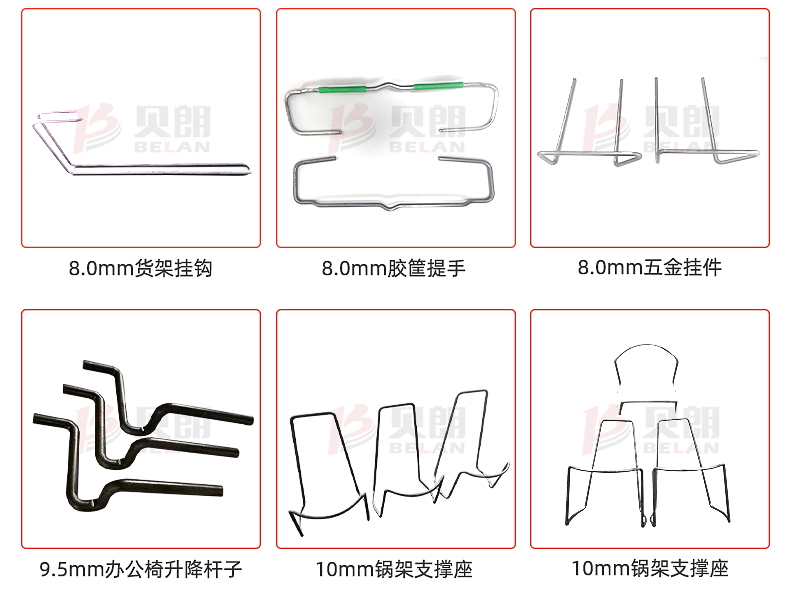

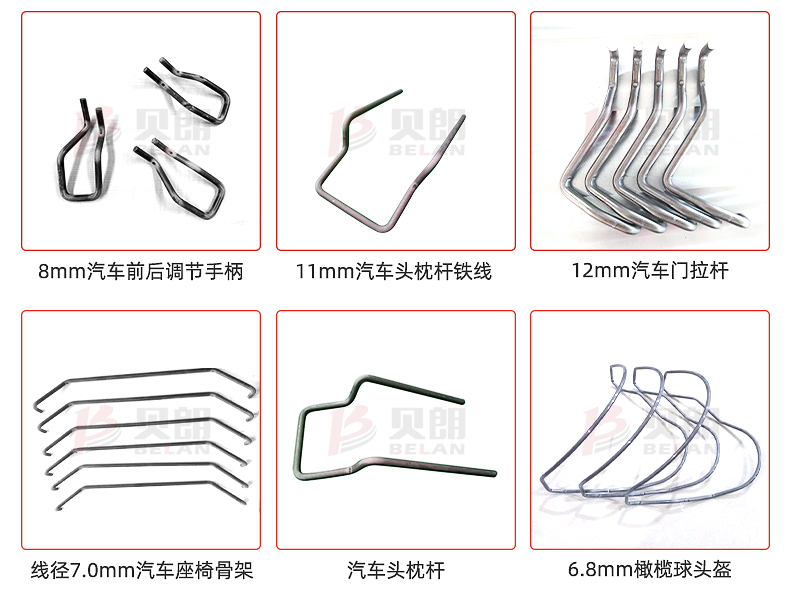

Turning Wire Bending Machine Samples Turning Wire Bending Machine Samples

Turning Wire Bending Machine BL-3D-51200

The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.

GET A QUOTE

Product Description

wire bending machine

Technical Parameters


Model BL-3D-51200
No. of Axis 5Axis
Input OD of Wire hard material  soft material
Φ5.0~Φ8.0mm Φ5.0~Φ12.0mm
No. of Feeding Round 4sets
Power of Wire Feeding Motor 7.5KW
Power of Turning Motor 4.5KW
Power of Wire Cuter Motor 1.0KW
Power of Moving Motor 1.0KW
Power of Angle Control Motor 2.0KW
Weight of Machine 3800KG
Input Power 380V/50HZ/3PH
Size(L*W*H) 3600mm X 1600mm X 2070mm

Product Advantages

1.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.
2, the computer Quick start-up and shut-down,operation simple, convenient, vivid.  The computer interface can be produced while adjusting the speed while changing the program.
3. High-speed motors imported from Japan and speed reducer imported from Germany are used in the configuration, and the production speed is more than 25% higher than that of similar products in the domestic industry.
4, wire feed and arm, both separate and cooperate, when turning the head really do not turn the line, can achieve smaller outer diameter arc and multi-circle product forming.
5. The production can achieve no change in the Angle at the slowest speed and better production stability.
6. Bearings, gears and other important parts are imported from Taiwan, one year warranty. The equipment is durable and reliable.
7, High precision, can do 5.0-12.0 mm wire diameter range of wire molding products, error to 0.1 mm

Product Application

Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

Wire Bending Machine products

Wire Bender Videos

Wire Forming Drawing

Bending cases of wireBending cases of wireBending cases of wireBending cases of wire


Manufacturing Capacity

Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
