    Pier Bender Machine

    Introduction：
    Pier head +bending by one computer control,two processes one molding.The Pier Bender Machine is applicable to the production of automobile exhaust pipe hooks,as well as other wire forming products formed after cold pier.

    GET A QUOTE

    Product Description

    Pier Head Bending Machine

    Technical Parameters

    Model No. BL-3D-51200
    No. of Axis 5
    input OD of Wire hard material
    Φ4.0～φ8.0mm    		 soft material
    Φφ5.0 ～φ12.0mm
    No. of Feeding Round 4
    Power of Wire Feeding Motor 15.0KW
    Send shaft reducer 1:10
    Power of Turning Motor 5.5KW
    Power of Wire Cuter Motor 1.0KW
    Power of Moving Motor 1.0KW
    Power of Angle Control Motor 2.0KW
    Angular speed reducer 1:10
    Weight of Machine 3800KG
    Input Power 380V/50HZ/3PH
    Size of Machine 3600mm X 1600mm X 2070mm

    Product Advantages

    1. Pier head +bending by one computer control,two processes one molding.
    2.Adopting high-power servo motor imported from Japan,cold pier and shaping are in one step,showing the perfect combination of intelligence and strength.
    3.Reasonable modular design,high speed cold heading,good surface finish and uniform molding part.
    4.The core components adopting high hardness materials,which are durable and more stable.
    5.Wide range of working line diameter,multiple bending styles,and the pier head products can be made into 5-12mm products,usually 7.5-11-12mm products are made more frequently.
    6.The equipment is applicable to the production of automobile exhaust pipe hooks,as well as other wire forming products formed after cold pier.

    Pier Head Bending Video

    Product Application

    The Pier Bender Machine is applicable to the production of automobile exhaust pipe hooks,as well as other wire forming products formed after cold pier.Products are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

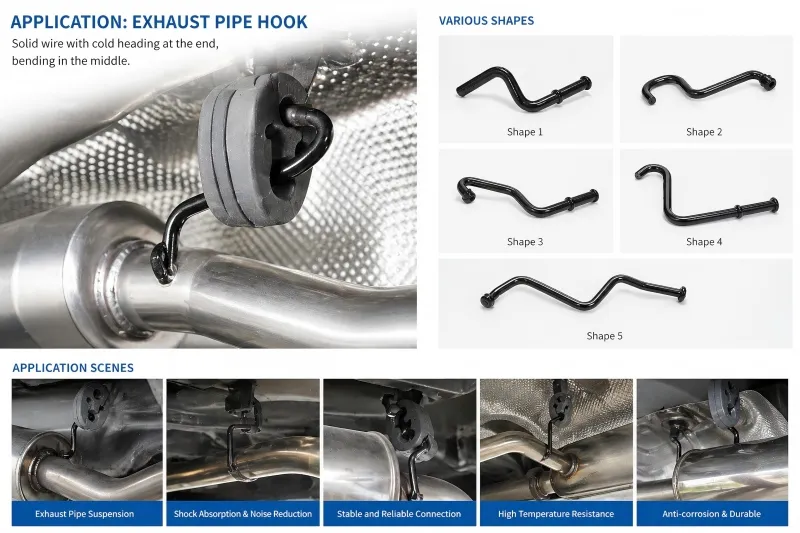

    Pier Head Bending products application

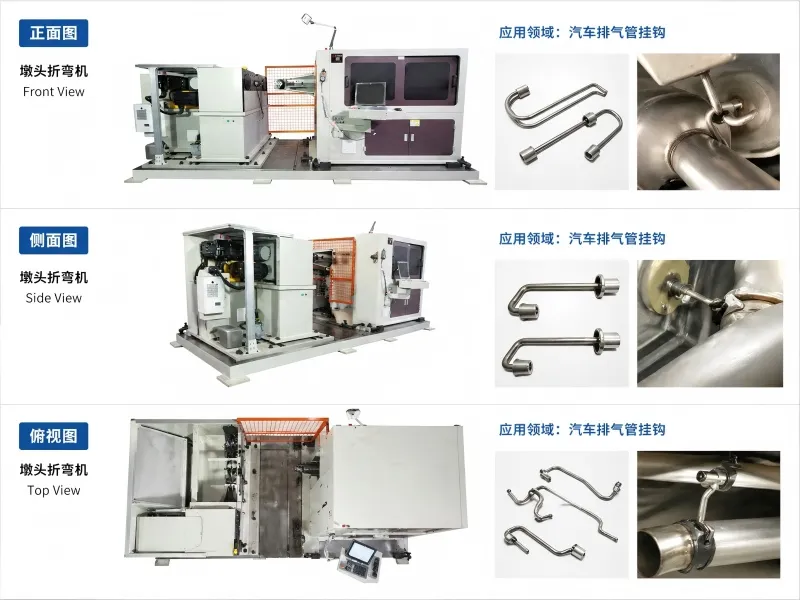

    Pier Bender Drawing

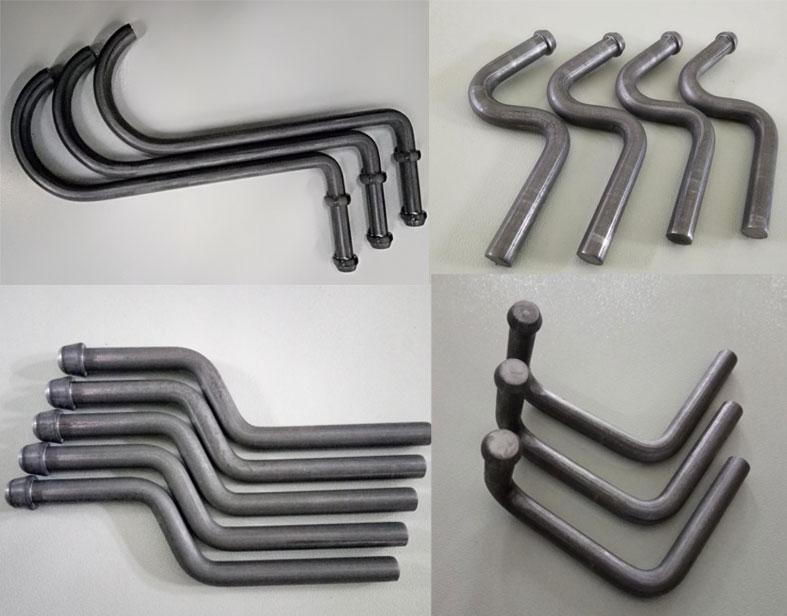

    Pier Head Bending products

    Manufacturing Capacity

    Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.

    Honor Certification

    Pier Head Bending products
