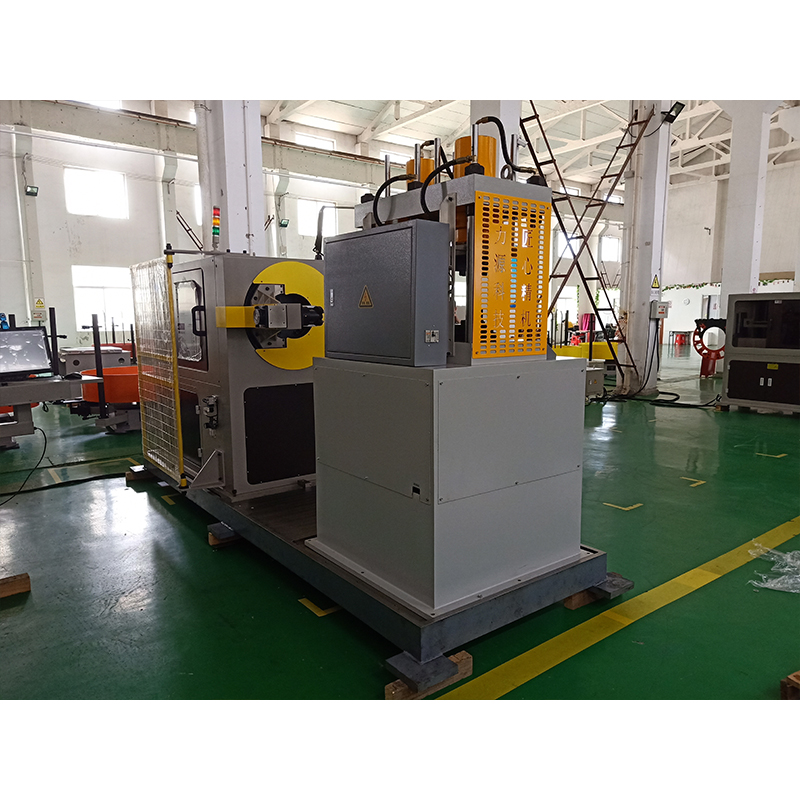

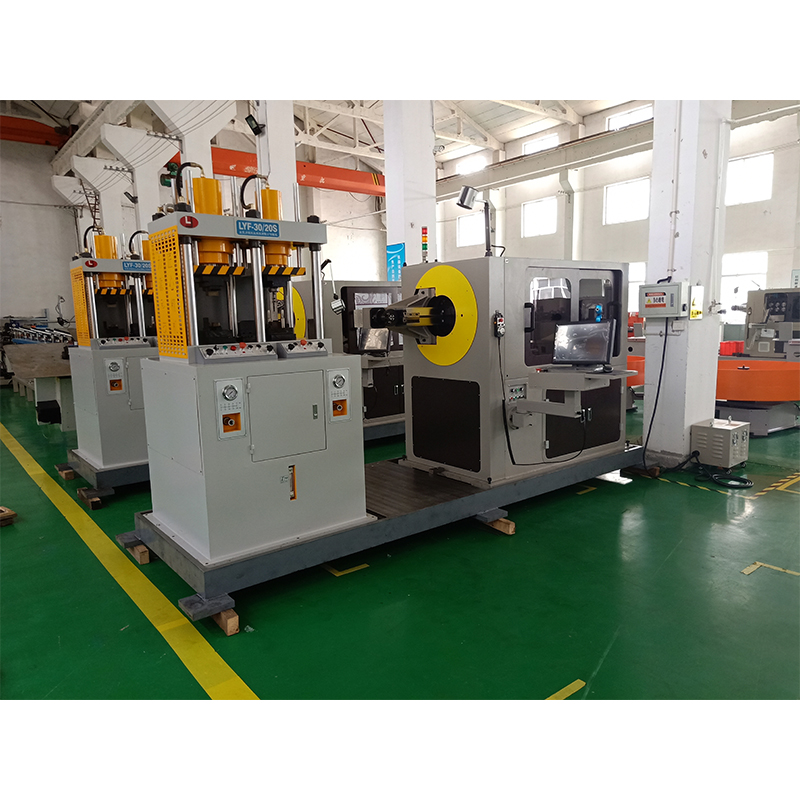

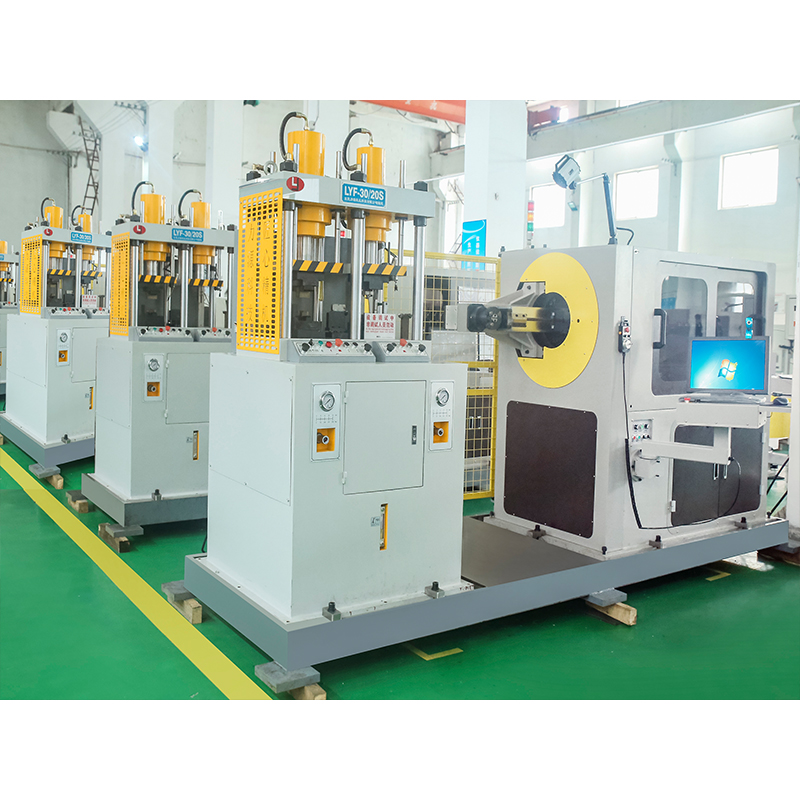

Product Description
Technical Parameters
| Model No. | BL-3D-5700 | |
| No. of Axis | 5 | |
| Input OD of Wire | Hard material Φ3.0 ～φ 6.0mm | Soft material Φ3.0 ～ φ8.0 mm |
| No. of Feeding Round | 3 | |
| Power of Wire Feeding Motor | 4.5KW | |
| Power of Turning Motor | 4.5KW | |
| Power of Wire Cuter Motor | 1.0KW | |
| Power of Moving Motor | 1.0KW | |
| Power of Angle Control Motor | 2.0KW | |
| Weight of Machine | 2800KG | |
| Input Power | 380V/50HZ/3PH | |
| Size of Machine | 3310mm X 2000mm X 1900mm | |
Operation Process
2. Punching machine flattening
3, punching machine punching
4. The bending machine pulls back the wire
5. Bending machine bending and forming
6. Finished cutting of bending machine
According to the size of 3-12mm wire diameter of the customer's products, different bending molding models are combined.
Product Advantages
1. Beat punching +bending by one computer control,three processes one molding.
2.Adopting high-power servo motor imported from Japan,cold pier and shaping are in one step,showing the perfect combination of intelligence and strength.
3.Reasonable modular design,high speed cold heading,good surface finish and uniform molding part.
4.The core components adopting high hardness materials,which are durable and more stable.
5.Wide range of working line diameter,multiple bending styles,and the beat punching bending products can be made into 3-8mm products.
6.the equipment is applicable to the production of Garden production,as well as other wire forming products formed after beat punching.
Pier Head Bending Video

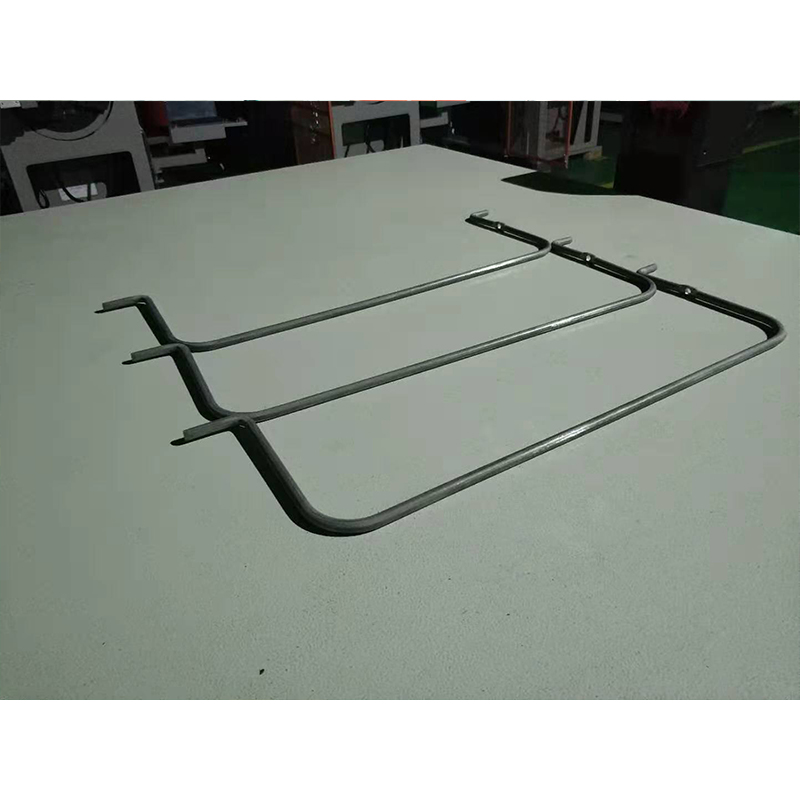

Pier Bending Product Application
Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.
Pier Head Bending Drawing
Manufacturing Capacity
Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
