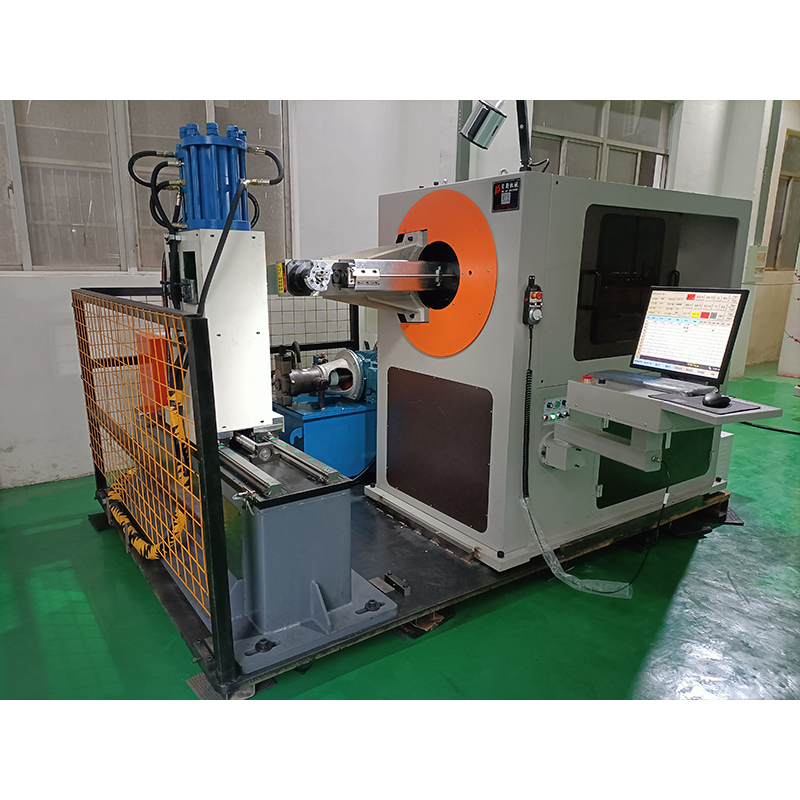

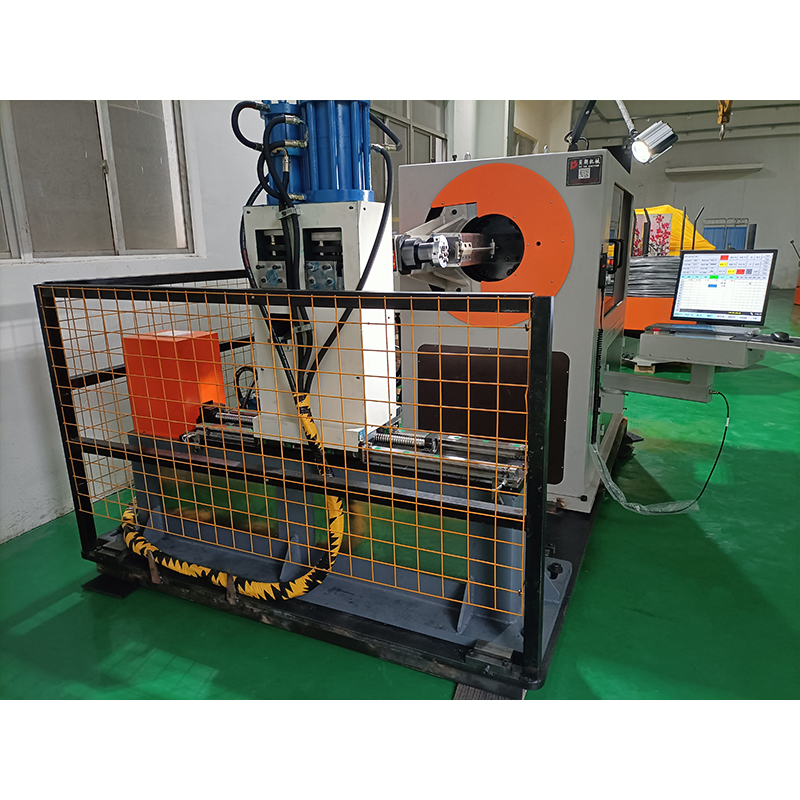

    Flat Punching and Forming Machine

    Introduction:
    This Beat punching +bending of Flat Punching and Bending Machine by one computer control,three processes one molding.According to the size of 3-12 mm wire diameter of the customer's products, different bending molding models are combined.

    GET A QUOTE

    Product Description

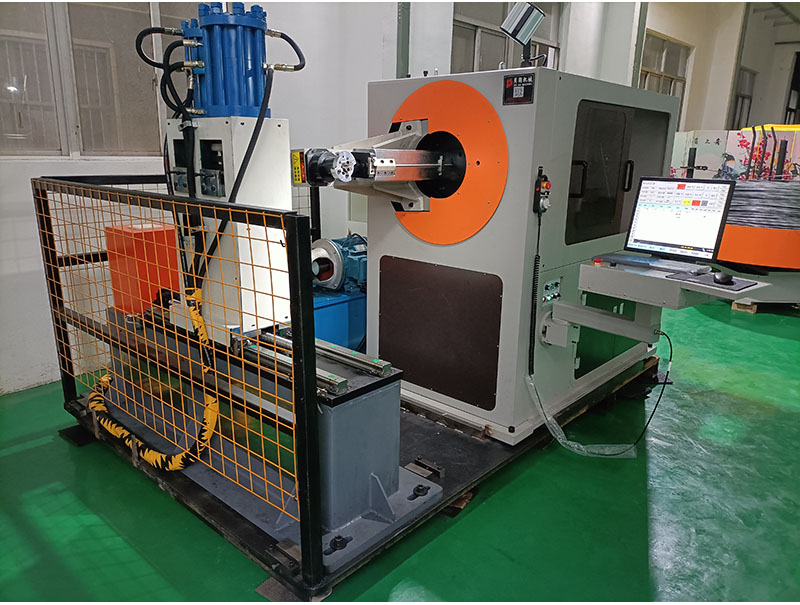

    flat punching forming machine

    Technical Parameters


    Model No BL-3D-5800
    No. of Axis 5
    Input OD of Wire Hard materialΦ3.0 ~φ 6.0mm Soft materialΦ3.0 ~ φ8.0 mm
    No. of Feeding Round 3
    Power of Wire Feeding Motor 4.5KW
    Power of Turning Motor 4.5KW
    Power of Wire Cuter Motor 1.0KW
    Power of Moving Motor 1.0KW
    Power of Angle Control Motor 2.0KW
    Weight of Machine 2800KG
    Input Power 380V/50HZ/3PH
    Size of Machine 3310mm X 2000mm X 1900mm

    Operation Process

    1. The bending machine sends the wire to the punching machine
    2. Punching machine flattening
    3, punching machine punching
    4. The bending machine pulls back the wire
    5. Bending machine bending and forming
    6. Finished cutting of bending machine
    According to the size of 3-12mm wire diameter of the customer's products, different bending molding models are combined.



    Product Advantages

    1.  Beat punching +bending by one computer control,three processes one molding.
    2.Adopting high-power servo motor imported from Japan,cold pier and shaping are in one step,showing the perfect combination of intelligence and strength.
    3.Reasonable modular design,high speed cold heading,good surface finish and uniform molding part.
    4.The core components adopting high hardness materials,which are durable and more stable.
    5.Wide range of working line diameter,multiple bending styles,and the beat punching bending products can be made into 3-8mm products.
    6.the equipment is applicable to the production of Garden production,as well as other wire forming products formed after beat punching.

    Pier Head Bending Video

    Pier Bending Product Application

    Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

    Pier Head Bending Application

    Pier Head Bending Drawing

    Pier Head Bending Samples
