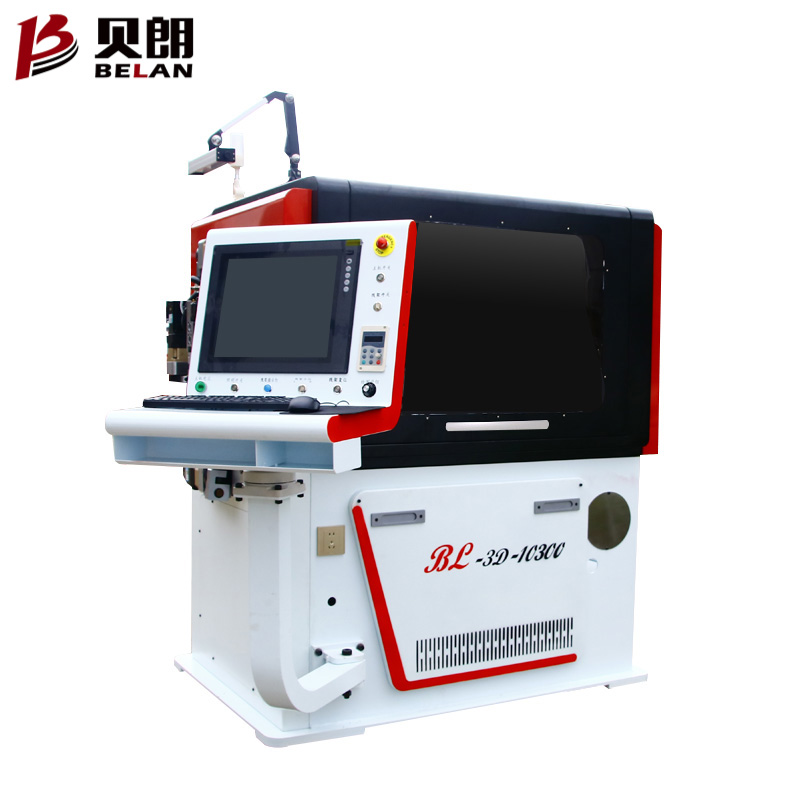

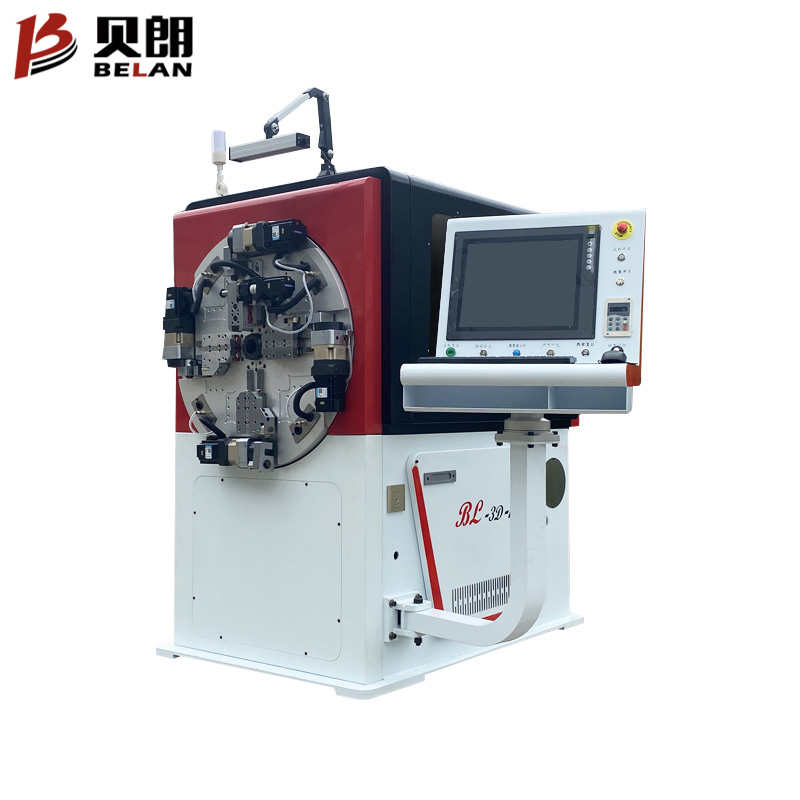

Precision and Efficiency Copper Wire Bending Machine Φ1.0-4.0mm

Straightening + paint removal + vacuuming + tinning + bending one-time forming

copper line bender machine copper line bender machine
copper line bender machine copper line bender machine

CNC copper wire inductance coil paint removal molding bending machine

CNC copper wire inductance coil paint removal molding bending machine

GET A QUOTE
Product Description
copper line bending machine

Technical Parameters

Type BL-3D-10300 Parameter
Applicable Wire Dia. Soft material Φ:1.0mm-4.0mm
Hard material Φ:1.0mm-2.5mm
Number of control Axis 10 Axis
Total power 9.75KW
1 axis arm 0.75KW
2 axis arm 0.75KW
3 axis arm 0.75KW
4 axis arm 0.75KW
5 axis left and right hand 0.4KW
6 axis curl 0.4KW
7 axis feed 1.8KW
8 axis turntable 3.0KW
9 axis bending core 0.4KW
10 axis peeling machine 0.75KW
Maximum wire feeding speed 80Mmin
Wire feeding accuracy 300mm±0.1mm
Input Power 380V/50Hz/3Ph
Weight 2000KG
Machine Size(L*W*H) 3500mm*1800mm*1600mm

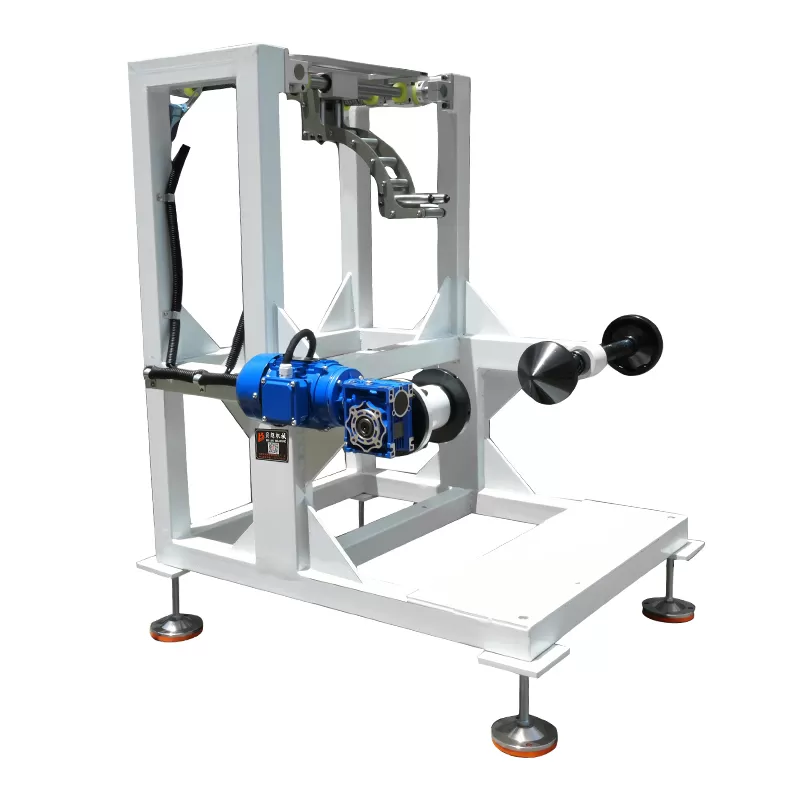

Maximum load weight of automatic wire feeder: 100KG

Product Advantages

Highly integrated and multifunctional
Straightening + paint removal + vacuuming + tinning + bending one-time forming, multiple processes, completed at one time, saving worry and effort.
10-axis servo precise control
Multifunctional 8-axis servo, combined with a professional operating computer system, ensures the accuracy and stability of product production.

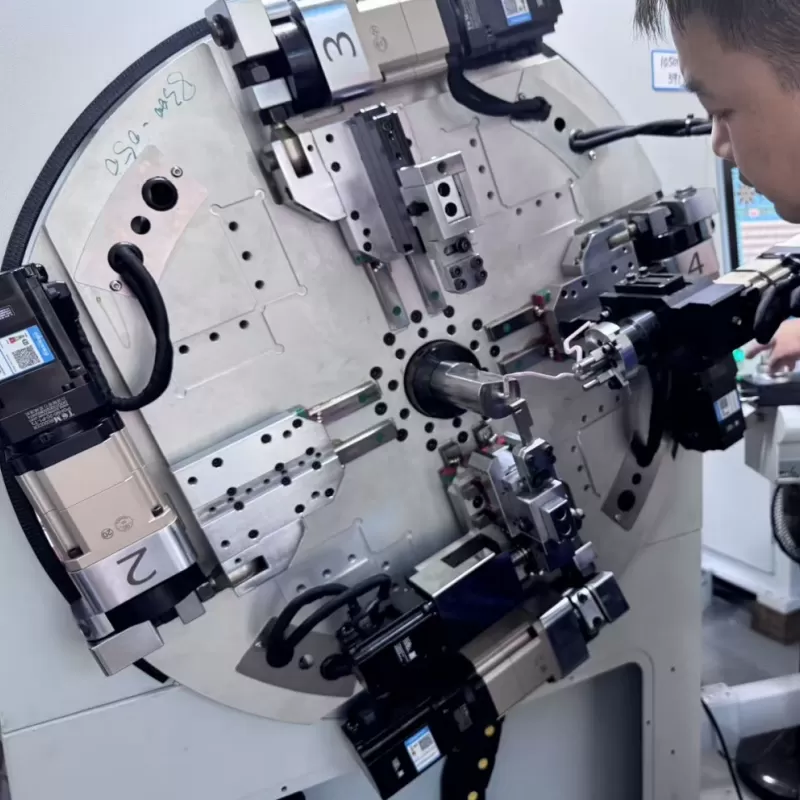

Turntable forming flexible and intelligent
The rotation of the turntable not only solves the three-dimensional forming, but also solves the problem that the copper wire needs to be stripped and the tin wire cannot be rotated, which is the biggest highlight of this machine.
Small wire forming suitable for both copper and iron

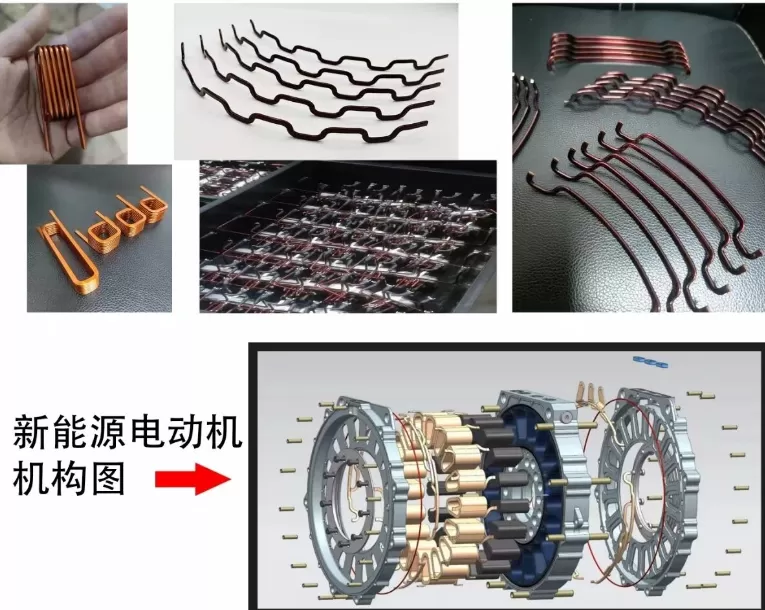

This machine is mainly customized for the bending of enamelled copper wire, and at the same time, it can also bend aluminum wire and iron wire products within the wire diameter range. It is the first choice for bending new energy small copper wire products.

Wire Bender Videos





Product Application

Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

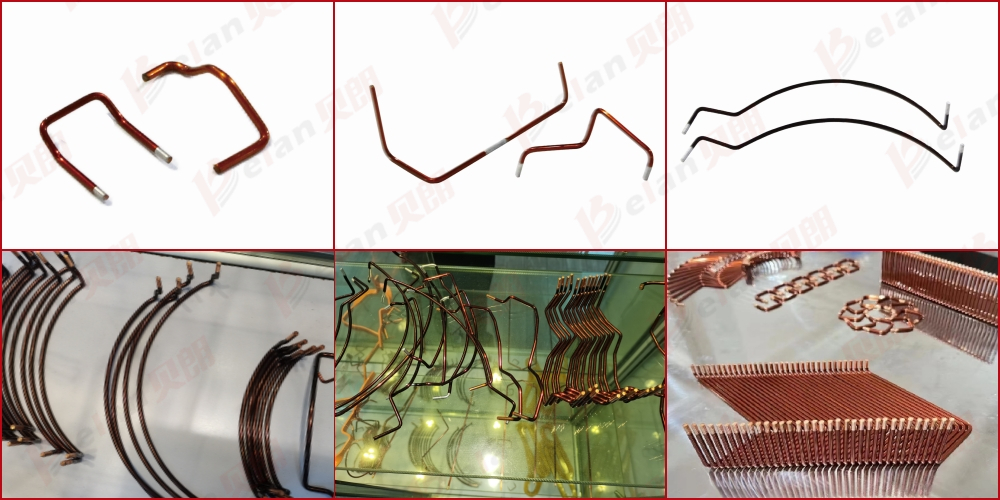

Wire Forming Drawing

cooper line

Manufacturing Capacity

Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.

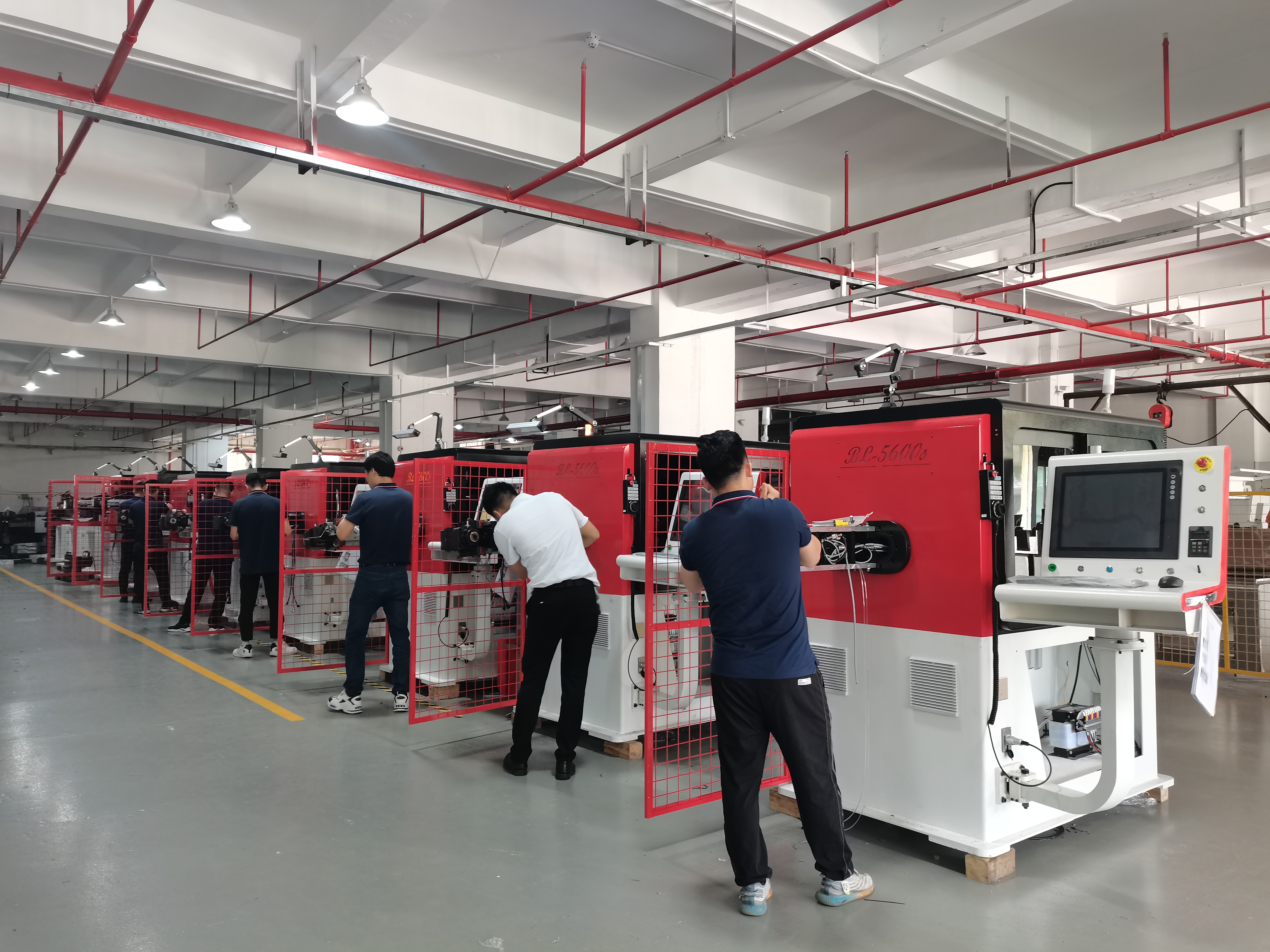

factory

Honor Certification

Customer case

Belan wire bending machine customer case
