    3D Turning Wire Bending Machine BL-3D-51400

    Introduction：
    1.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.
    2, wire feed and arm, both separate and cooperate, when turning the head really do not turn the line, can achieve smaller outer diameter arc and multi-circle product forming.
    3, High precision, can do 6.0-16.0 mm wire diameter range of wire molding products, error to 0.1 mm

    GET A QUOTE

    Product Description

    wire bending machine

    Technical Parameters

    （Model No.） BL-3D-51400
    No. of Axis 5Axis
    Input OD of Wire hard material
    Φ5.0～φ10.0mm    		 soft material
    Φ5.0～φ14.0mm
    No. of Feeding Round 4sets
    Power of Wire Feeding Motor 7.5KW
    Power of Turning Motor 4.4KW
    Power of Wire Cuter Motor 1.5KW
    Power of Moving Motor 1.0KW
    Power of Angle Control Motor 5.0KW
    Weight of Machine 4600KG
    Input Power 380V/50HZ/3PH
    Size（L*W*H） 3800×2200×2000mm

    Product Advantages

    1.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.
    2, the computer Quick start-up and shut-down,operation simple, convenient, vivid.  The computer interface can be produced while adjusting the speed while changing the program.
    3. High-speed motors imported from Japan and speed reducer imported from Germany are used in the configuration, and the production speed is more than 25% higher than that of similar products in the domestic industry.
    4, wire feed and arm, both separate and cooperate, when turning the head really do not turn the line, can achieve smaller outer diameter arc and multi-circle product forming.
    5. The production can achieve no change in the Angle at the slowest speed and better production stability.
    6. Bearings, gears and other important parts are imported from Taiwan, one year warranty. The equipment is durable and reliable.
    7, High precision, can do 6.0-18.0 mm wire diameter range of wire molding products, error to 0.1 mm

    Product Application

    Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

    Wire Bending Machine products

    Wire Bender Videos

    Wire Forming Drawing

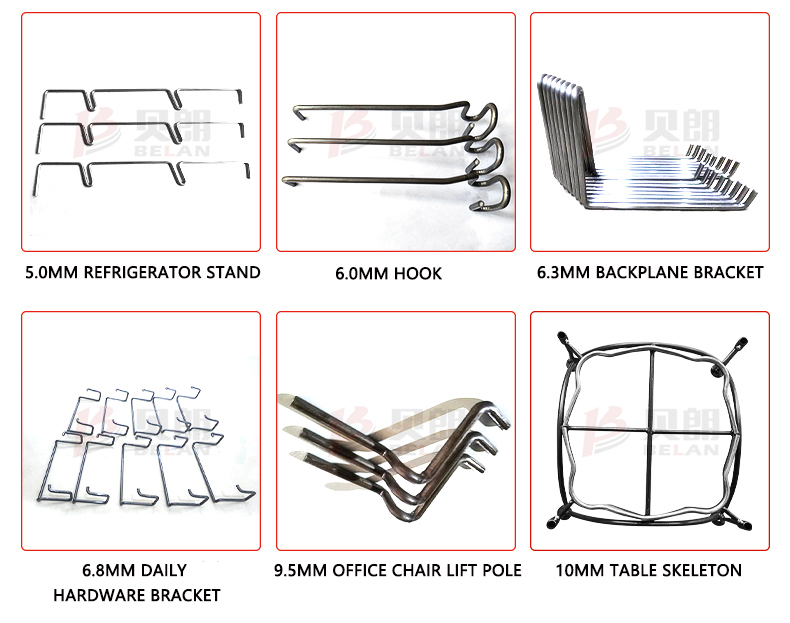

    wire forming samples
    Bending sample of wireBending sample of wireBending sample of wire

    Manufacturing Capacity

    Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
