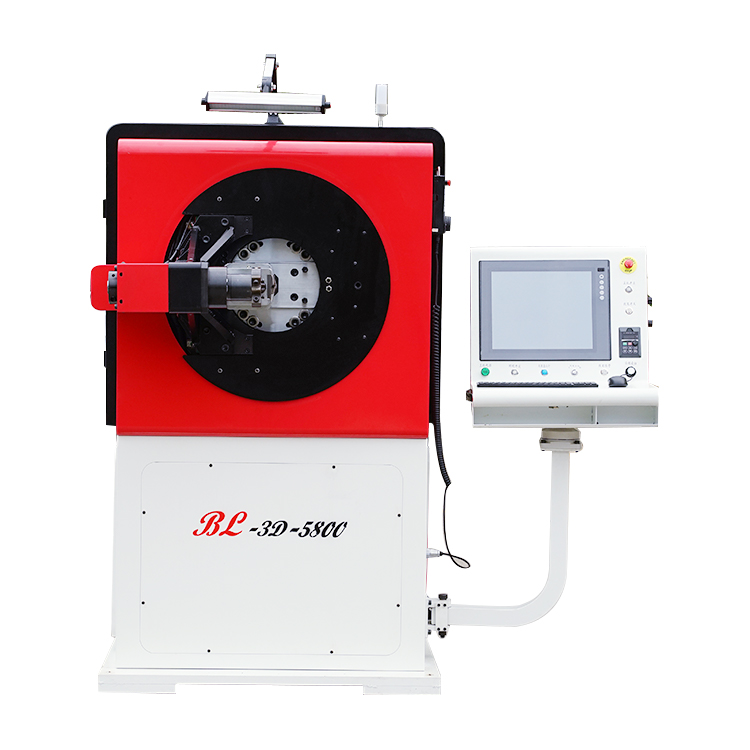

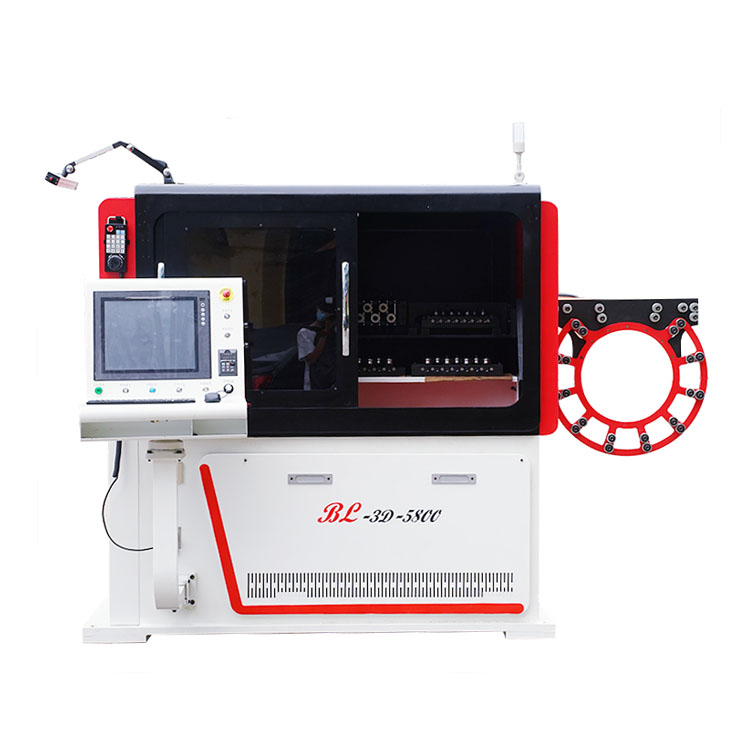

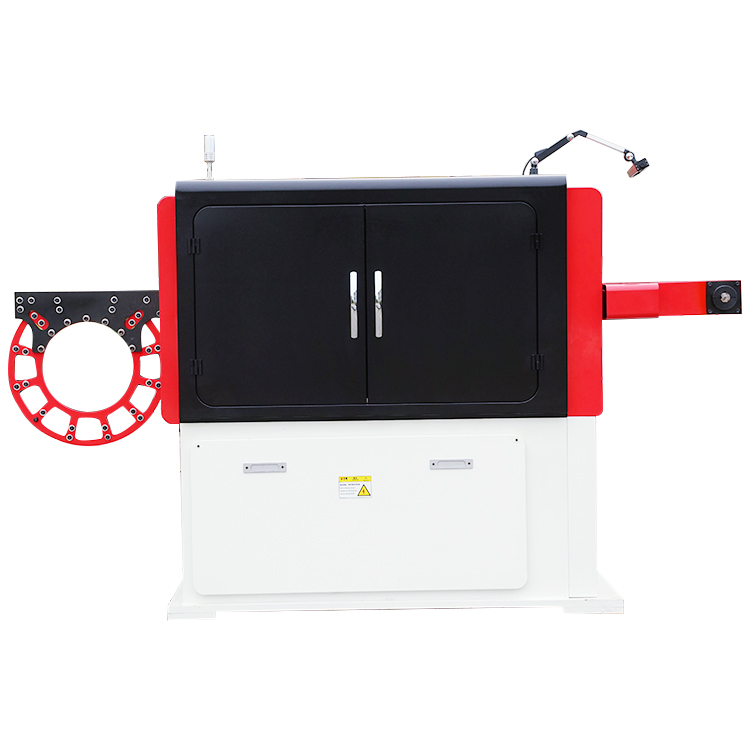

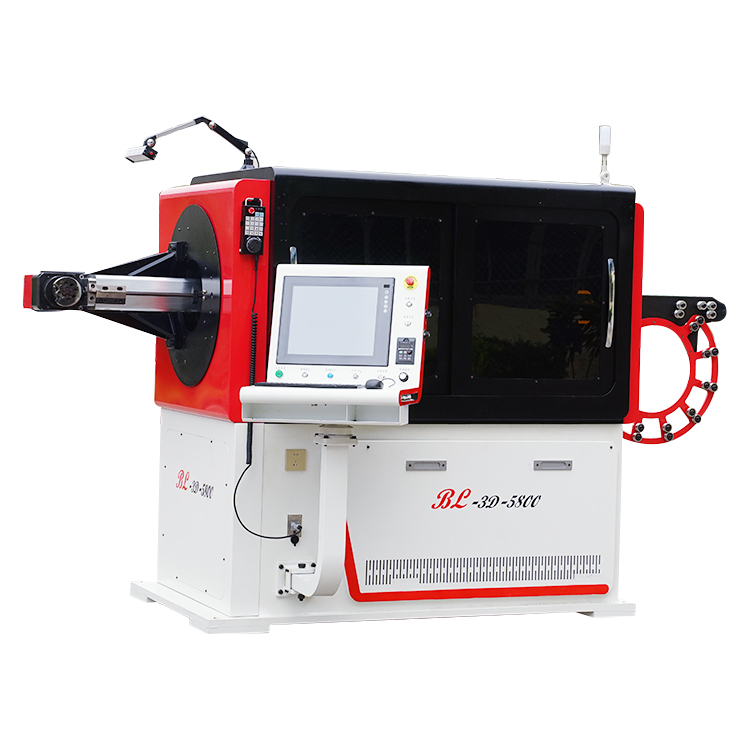

3.0-8.0mmTurning Wire Bending Machine BL-3D-5800

Belan Turning Wire Bending Machine is suitable for 3-8mm metal wire forming machine.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.

GET A QUOTE

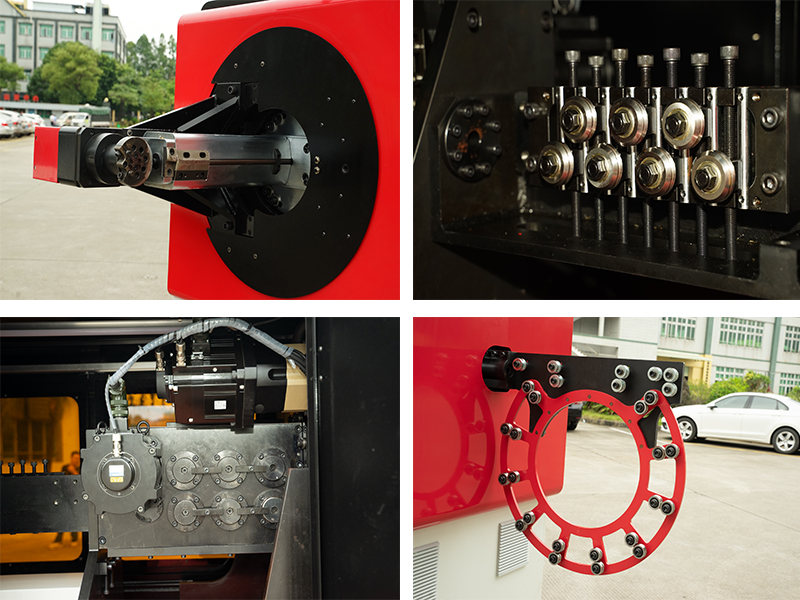

Product Description

3D wire bending  machine
wirebendingmachine

Technical Parameters



(Model No.) BL-3D-5800
No. of Axis 5 axis
Input OD of Wire hard material
Φ3.0 ~φ 6.0mm
soft material
Φ3.0 ~ φ8.0 mm
No. of Feeding Round 3 sets
Power of Wire Feeding Motor 4.5KW
Power of Turning Motor 2.7KW
Power of Wire Cuter Motor 1.0KW
Power of Moving Motor 1.0KW
Power of Angle Control Motor 1.0KW
Weight of Machine 3000KG
Input Power 380V/50HZ/3PH
Size(L*W*H) 3100*2000*1900

Product Advantages

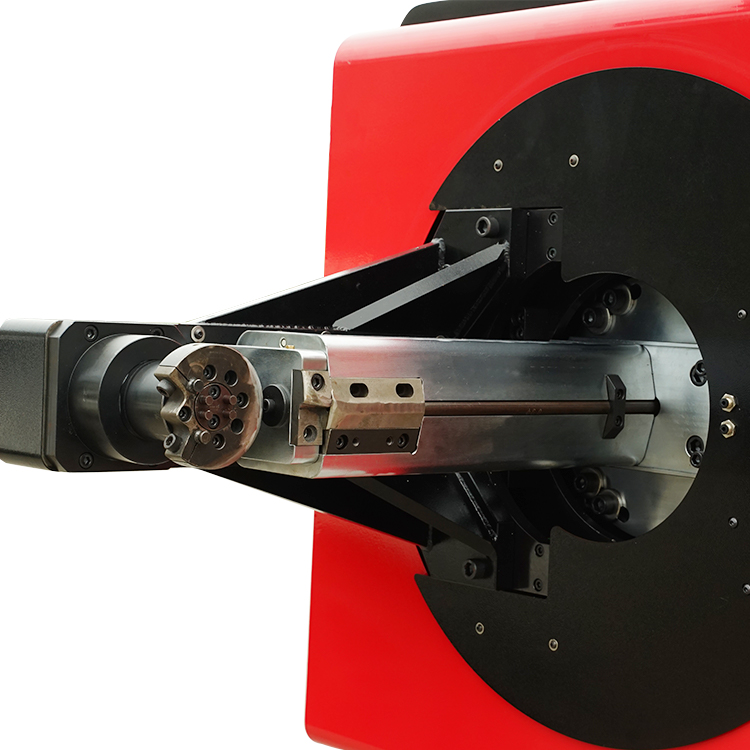

1.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.
2, the computer Quick start-up and shut-down,operation simple, convenient, vivid.  The computer interface can be produced while adjusting the speed while changing the program.
3. High-speed motors imported from Japan and speed reducer imported from Germany are used in the configuration, and the production speed is more than 25% higher than that of similar products in the domestic industry.
4, wire feed and arm, both separate and cooperate, when turning the head really do not turn the line, can achieve smaller outer diameter arc and multi-circle product forming.
5. The production can achieve no change in the Angle at the slowest speed and better production stability.
6. Bearings, gears and other important parts are imported from Taiwan, one year warranty. The equipment is durable and reliable.
7, High precision, can do 3.0-8 mm wire diameter range of wire molding products, error to 0.1 mm

Wire Bender Videos



Product Application



Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

Wire Forming Drawing

wire bending

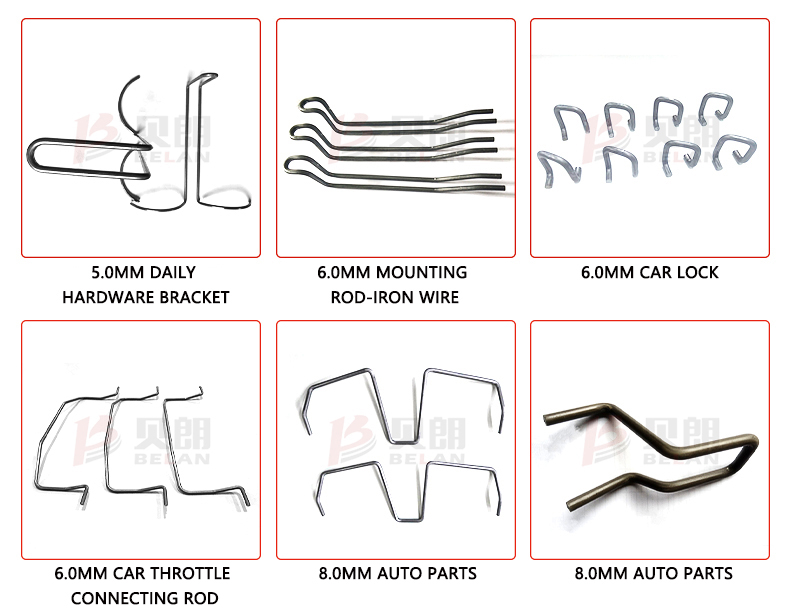

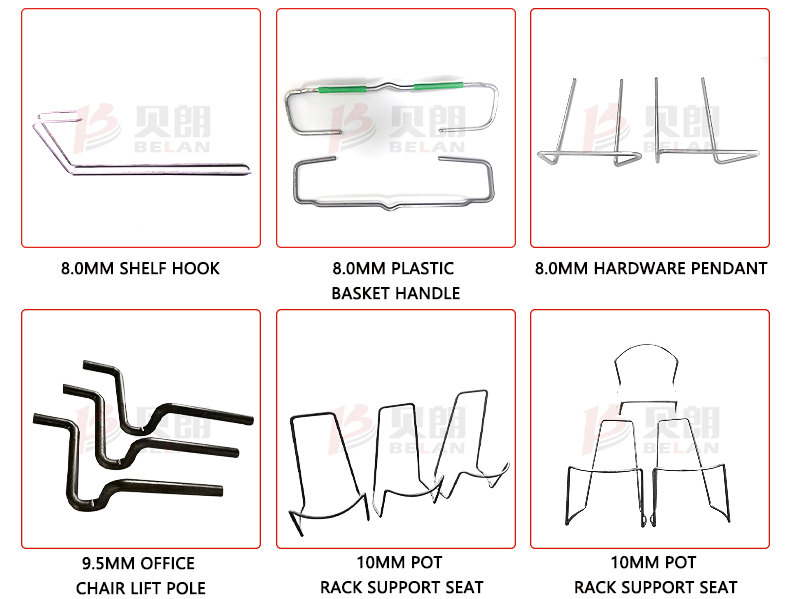

Bending sample of wire

Manufacturing Capacity

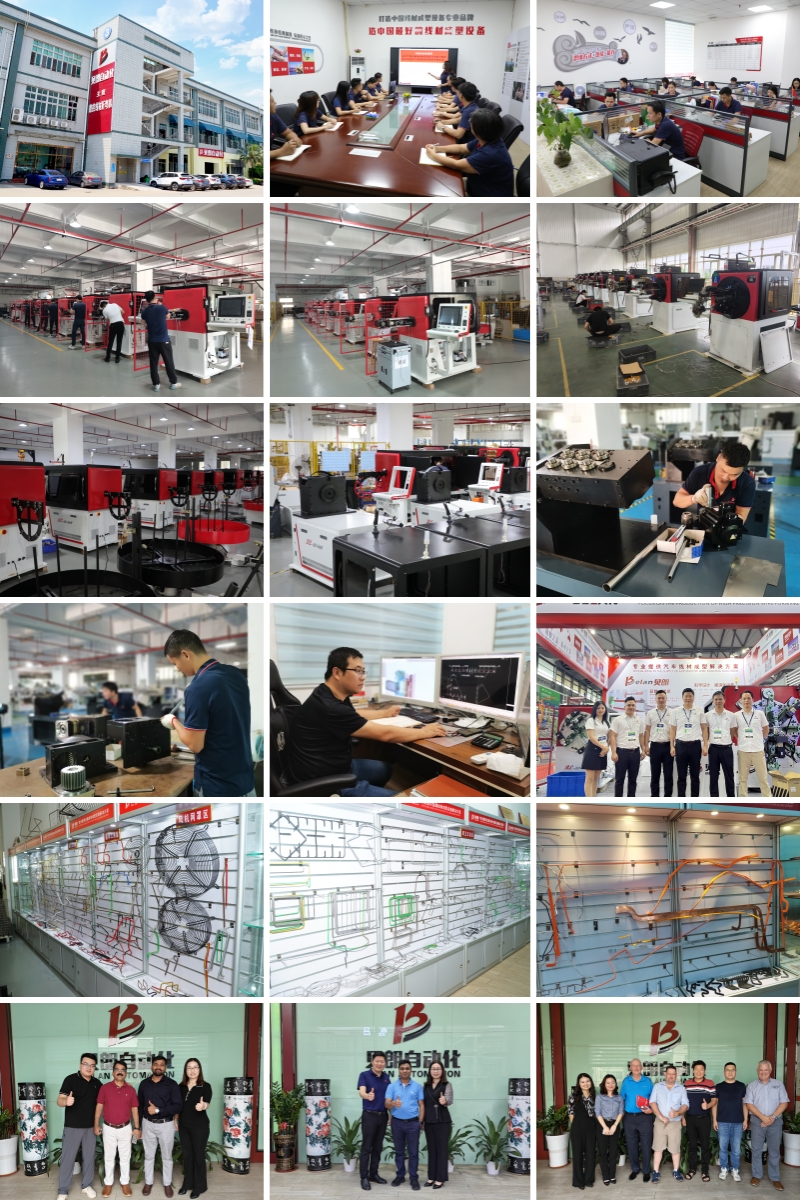

belan wire bending machine workshop

Belan automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
