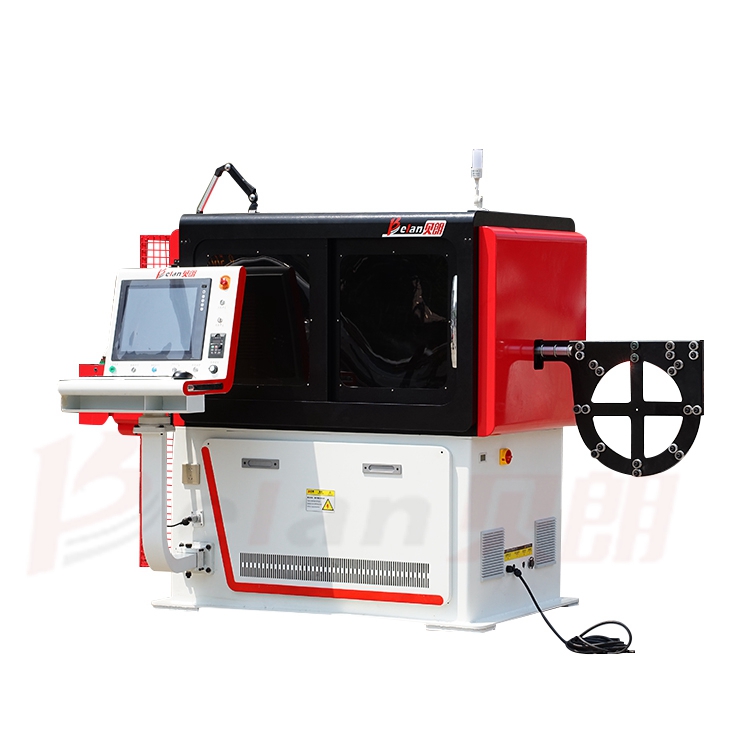

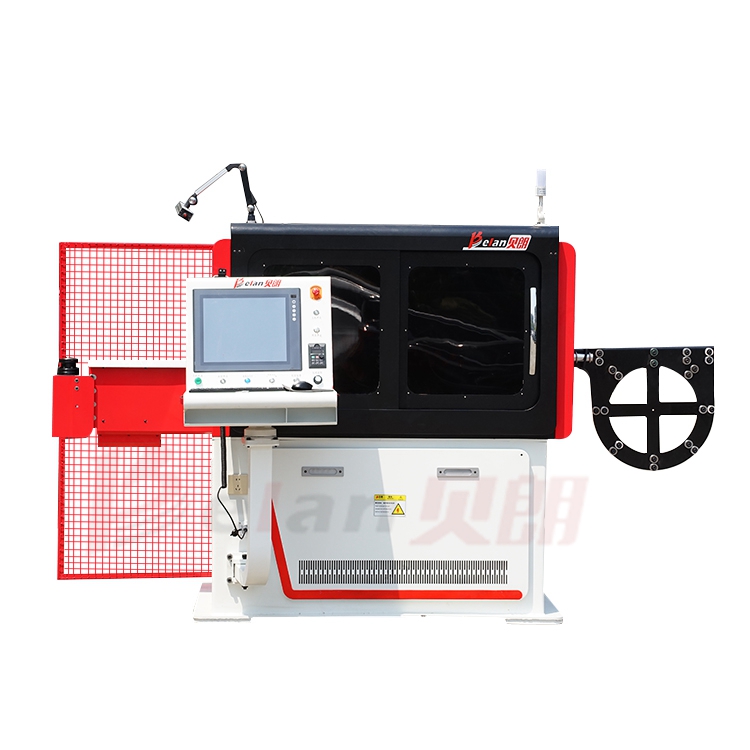

2.0-6.0 mm Turning Wire Bending Machine BL-3D-5600

The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.

GET A QUOTE

Product Description

3d wire bending machine

Technical Parameters



(Model No.) BL-3D-5600
No. of Axis 5 axis
Input OD of Wire hard material
Φ2.0 ~φ 4.0mm
soft material
Φ2.0 ~ φ6.0 mm
No. of Feeding Round 2 sets
Power of Wire Feeding Motor 2.7KW
Power of Turning Motor 2.7KW
Power of Wire Cuter Motor 1.0KW
Power of Moving Motor 0.4KW
Power of Angle Control Motor 1.0KW
Weight of Machine 2500KG
Input Power 380V/50HZ/3PH
Size(L*W*H) 2960*1770*1880

Product Advantages



1.The principle of the turning wire bending machine is that the line does not turn bur the head turn,Lightweight head structure, to ensure rapid and stable production.
2, the computer Quick start-up and shut-down,operation simple, convenient, vivid.  The computer interface can be produced while adjusting the speed while changing the program.
3. High-speed motors imported from Japan and speed reducer imported from Germany are used in the configuration, and the production speed is more than 25% higher than that of similar products in the domestic industry.
4, wire feed and arm, both separate and cooperate, when turning the head really do not turn the line, can achieve smaller outer diameter arc and multi-circle product forming.
5. The production can achieve no change in the Angle at the slowest speed and better production stability.
6. Bearings, gears and other important parts are imported from Taiwan, one year warranty. The equipment is durable and reliable.
7, High precision, can do 3.0-8 mm wire diameter range of wire molding products, error to 0.1 mm

Wire Bender Videos



Product Application



Products Are mainly Used In Automobiles, Kitchenware, Garden Tools, Supermarket Shelves, Furniture, etc.

Wire Forming Drawing

wire bending
Bending sample of wire

Manufacturing Capacity



Belang automation equipment co., LTD. is an innovative technology enterprise integrating r&d, manufacturing, sales and system integration services. Focusing on providing customers with solutions for high-precision 3D wire forming equipment, we are committed to promoting the transformation and upgrading of China's manufacturing industry to intelligent manufacturing.
